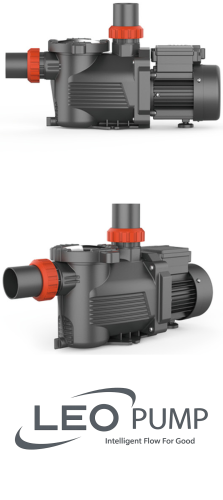

Leo XKP256 / 250W 230V Pool Pump And Motor
15522
The LEO XKP256 is a compact pool pump engineered specifically for water circulation in small domestic swimming pools and residential aquatic systems. This reliable pool pump excels at maintaining crystal-clear water by effectively filtering slightly dirty water containing suspended solids, making it an ideal choice for homeowners seeking dependable year-round pool maintenance without the complexity of larger commercial systems.
Built with a durable engineering plastic pump body, the XKP256 withstands the demanding environment of pool applications while operating safely across water temperatures from 5 to 50 degC. Its single-phase motor features either copper or aluminum winding options, complete with integrated thermal protection and IPX5-rated enclosure classification for water resistance, ensuring consistent performance whether you're running routine circulation cycles or managing seasonal pool care with ease.
At a glance
Power: 0.25 kWSupply: 230 V single-phase, 50 HzMax. head: 7.5 mMax. flow: 6 m³/h (100 l/min)Connections: 48.5/50 mmSpecifications
| Brand | Leo |
| Model | XKP256 |
| Type | XKP..6 Pool Pump 250-850 W |
| Motor power | 0.25 kW |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 48.5/50 mm |
| Shut-off head | 7.5 m |
| Flow range | 0 – 6 m³/h (0 – 100 l/min) |
| Dimensions (W × L × H) | 17 × 41 × 20 cm |
| Weight | 5.2 kg |
| Item code | XKP256(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 3 | 6 |
|---|---|---|---|
| Flow Q (l/min) | 0 | 50 | 100 |
| Head H (m) | 7.5 | 6.3 | 2.9 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XKP256:
Leo XKP..6 Pool Pump 250-850 W – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p50)
307 kB | Download
Applications
It is used for water circulation in all kinds of small domestic swimming pools. Slightly dirty water with solids in suspension can be perfectly filtered.
Pump
- Engineering plastic pump body
- Medium temperture: 5 - 50 degC
- Environmental temperture: <=40 degC
- Max. suction: 3.5 m
Motor
- Motor with copper or aluminum winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX5
Model Code: XKP256(220V)
- XKP - Pool Pump
- 25 - Power (x10W)
- 6 - Product Style
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XKP256?
The Leo XKP256 has a maximum head of 7.5 m.
How much water can the Leo XKP256 pump?
The Leo XKP256 pumps up to 6 m³/h (100 l/min).
What power supply does the Leo XKP256 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.25 kW.
What are the pipe connections of the Leo XKP256?
48.5/50 mm.
