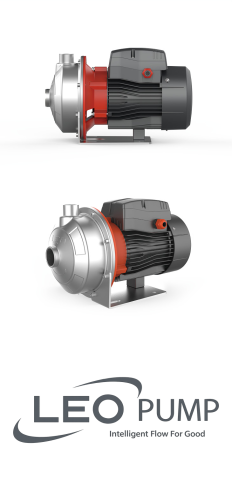

Leo AMS120-0.55 / 0.55KW 400V Centrifugal Pump And Motor
15553
The LEO AMS120-0.55 is a 0.55 kW 400V three-phase AMS stainless steel centrifugal pump for clean water transfer, pressure boosting and irrigation.
Application
It is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.
Pump
- AISI 304 pump body
- AISI 304 shaft
- Max. operating pressure: 4.5 bar
- Max.liquid temperature: +85 degC
- Altitude: up to 1000 m
Motor
- IE2 motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperture: +40 degC
Identification Codes
- A - LEO Product Style
- MS - Stainless Steel Centrifugal Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 70 - Rated Flow (l/min)
- 0.37 - Rated Power (kW)
Performance table
| Flow Q (m³/h) | 0 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 |
| Head H (m) | 20.2 | 17.9 | 16.6 | 15.1 | 13.3 | 11.2 | 8.7 |
Source: LEO AMS stainless steel centrifugal pump technical data, 50 Hz.
