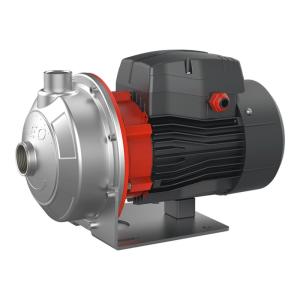

Leo AMS120-0.55 / 0.55KW 400V Centrifugal Pump And Motor
15553
The LEO AMS120-0.55 is a 0.55 kW 400V three-phase AMS stainless steel centrifugal pump for clean water transfer, pressure boosting and irrigation.
At a glance
Power: 0.55 kW (0.75 HP)Supply: 400 V three-phase, 50 HzMax. head: 20.2 mMax. flow: 9.6 m³/h (160 l/min)Connections: 1 1/4" / 1"Specifications
| Brand | Leo |
| Model | AMS120-0.55 |
| Type | AMSm/AMS Stainless Steel Centrifugal Pump |
| Motor power | 0.55 kW (0.75 HP) |
| Supply | 400 V three-phase, 50 Hz |
| Inlet / outlet | 1 1/4" / 1" |
| Shut-off head | 20.2 m |
| Flow range | 0 – 9.6 m³/h (0 – 160 l/min) |
| Dimensions (W × L × H) | 24 × 38 × 27 cm |
| Weight | 11 kg |
| Item code | AMS120-0.55(380V) |
Performance Table
| Flow Q (m³/h) | 0 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.6 |
|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 60 | 80 | 100 | 120 | 140 | 160 |
| Head H (m) | 20.2 | 17.9 | 16.6 | 15.1 | 13.3 | 11.2 | 8.7 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo AMS120-0.55:
Leo AMSm/AMS Stainless Steel Centrifugal Pump – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p39)
322 kB | Download
Applications
It is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.
Pump
- AISI 304 pump body
- AISI 304 shaft
- Max. operating pressure: 4.5 bar
- Max.liquid temperature: +85 degC
- Altitude: up to 1000 m
Motor
- IE2 motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperture: +40 degC
Model Code: AMS120-0.55(380V)
- A - LEO Product Style
- MS - Stainless Steel Centrifugal Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 70 - Rated Flow (l/min)
- 0.37 - Rated Power (kW)
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo AMS120-0.55?
The Leo AMS120-0.55 has a maximum head of 20.2 m.
How much water can the Leo AMS120-0.55 pump?
The Leo AMS120-0.55 pumps up to 9.6 m³/h (160 l/min).
What power supply does the Leo AMS120-0.55 need?
Supply: 400 V three-phase, 50 Hz. Motor power: 0.55 kW (0.75 HP).
What are the pipe connections of the Leo AMS120-0.55?
1 1/4" / 1".
