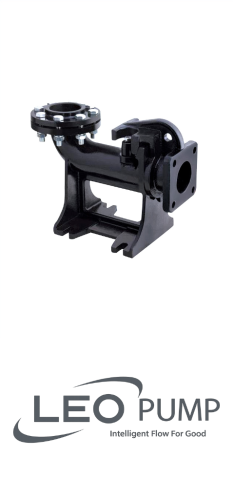

Duckfoot 80WQ Range
15580
Introducing the LEO Duckfoot 80WQ Range Guide Rail System, a purpose-built submersible pump installation accessory designed for permanent wet well installations across municipal sewage treatment plants, drainage stations and industrial wastewater facilities. This guide rail system enables safe, tool-free submergence and retrieval of 80WQ submersible sewage pumps without requiring personnel to enter the wet well.
Conforming to ISO7005-92 flange standards, the system automatically engages with the flanged elbow (duckfoot bend) upon lowering, creating a secure sealed connection at the base. The upper and lower guide supports keep the pump aligned on the guide rails during both operation and maintenance, eliminating the need to dewater the sump for pump access.
Guide Rail System
- Suitable for pumps with flanges conforming to ISO7005-92 standard
- Automatic engagement with flanged elbow upon lowering
- Enables pump removal and reinstallation without entering the wet well
- Compatible with 80WQ series submersible sewage pumps
Includes
- Duck-foot bend (flanged elbow)
- Guide hook
- Flange connector
- Upper guide support
- Bolts and lock washers
Not Included
- Foundation bolts (to be provided on-site)
- Guide pipes/rails (to be provided on-site)
Identification Codes
SW [Pipe Diameter] - [Pump Outlet]
- SW – LEO Product Style
- Pipe Diameter – Connecting pipe diameter (mm)
- Pump Outlet – Pump discharge outlet diameter (mm)
