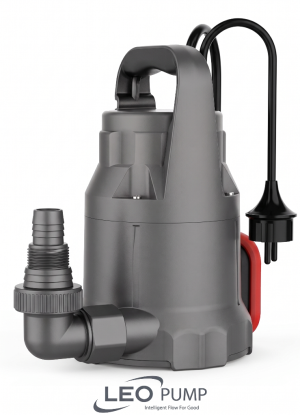

Leo XKS-410P / 400W 230V Submersible Garden Pump And Motor
15588
Introducing the LEO XKS-410PL, a versatile submersible garden pump engineered to handle water transfer and drainage tasks with reliable automatic operation. This robust pump excels at lifting clean water from wells and pools, as well as draining basements and other low-lying areas where water accumulation is a problem. Built on proven submersible pump technology, the XKS-410PL delivers consistent performance for both residential and light commercial water management applications.
Constructed from durable engineering plastic, this submersible pump combines lightweight durability with corrosion resistance, making it ideal for prolonged immersion in water environments. An integrated float switch automatically activates and deactivates the pump based on water levels, eliminating the need for manual operation, while a built-in thermal protector safeguards the motor against overheating. Whether you're managing groundwater from a well, maintaining pool levels, or preventing basement flooding, the XKS-410PL's submersible design and intelligent safety features make it the practical choice for reliable water transfer of clean water and liquids with similar physical and chemical properties.
At a glance
Power: 0.4 kWSupply: 230 V single-phase, 50 HzMax. head: 7.9 mMax. flow: 12 m³/h (200 l/min)Connections: Outlet 1 1/4"Specifications
| Brand | Leo |
| Model | XKS-410P |
| Catalogue model | XKS-410PL |
| Type | XKS-PL Garden Submersible Pump (clean water) |
| Motor power | 0.4 kW |
| Supply | 230 V single-phase, 50 Hz |
| Connection | Outlet 1 1/4" |
| Shut-off head | 7.9 m |
| Flow range | 0 – 12 m³/h (0 – 200 l/min) |
| Dimensions (W × L × H) | 35 × 42 × 33 cm |
| Weight | 19.3 kg |
| Item code | XKS-410P220V) |
Performance Table
| Flow Q (m³/h) | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 33 | 67 | 100 | 133 | 167 | 200 |
| Head H (m) | 7.9 | 6.9 | 5.7 | 4.6 | 3.4 | 2.1 | 0.8 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo XKS-410P:
Leo XKS-PL / XKS-PWL Garden Submersible Pump (clean water) – Performance Curves and Technical Data (GARDEN PUMP catalogue p5)
315 kB | Download
Applications
- Can be used for transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable to be immersed in water for lifting water from well or the pool, and draining water from the basement
Features
- Engineering plastic pump body
- Float switch ensures automatic cut-in and cut-out
- Built-in thermal protector
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo XKS-410P?
The Leo XKS-410P has a maximum head of 7.9 m.
How much water can the Leo XKS-410P pump?
The Leo XKS-410P pumps up to 12 m³/h (200 l/min).
What power supply does the Leo XKS-410P need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.4 kW.
What are the pipe connections of the Leo XKS-410P?
Outlet 1 1/4".
