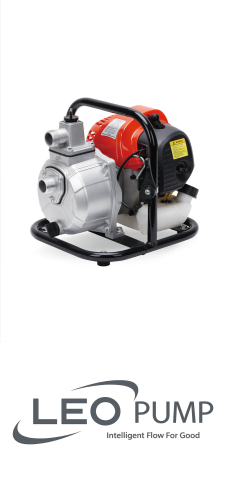

Leo LGP10 / 1.6HP Gasoline Pump And Engine
15592
Introducing the LEO LGP10 gasoline water pump, a reliable and portable solution engineered for transferring clean water across diverse industrial and agricultural applications. This compact gasoline water pump excels in water supply and drainage for factories, mines, and municipal facilities, while also proving invaluable for field irrigation projects where mobility and dependable performance are essential. Built by LEO-a trusted name in pump engineering-the LGP10 combines portability with robust construction to deliver consistent results in demanding environments.
Constructed with an anti-rust cast iron impeller and diffuser, this gasoline-powered pump resists corrosion while maintaining exceptional hydraulic efficiency even in challenging conditions. The single-cylinder, air-cooled 2-stroke engine operates at 7500 rpm with a maximum power output of 1.6 HP, delivering impressive suction capacity of up to 8 meters while consuming minimal fuel for cost-effective operation. Ideal for temporary water transfer, emergency drainage, and remote locations where electric pumps aren't practical, the LGP10's ergonomic frame and 25mm inlet/38mm outlet ports make it the go-to choice for contractors and facility managers seeking durability without compromise.
At a glance
Power: 1.19 kW (1.6 HP)Max. head: 35 mMax. flow: 6 m³/h (100 l/min)Connections: 1"Specifications
| Brand | Leo |
| Model | LGP10 |
| Type | LGP Gasoline Water Pump (2-stroke, 1"/1.5") |
| Motor power | 1.19 kW (1.6 HP) |
| Inlet / outlet | 1" |
| Shut-off head | 35 m |
| Flow range | 0 – 6 m³/h (0 – 100 l/min) |
| Dimensions (W × L × H) | 29 × 35 × 32.5 cm |
| Weight | 6.84 kg |
| Item code | LGP10 |
Performance Table
| Flow Q (m³/h) | 0 | 2 | 4 | 6 |
|---|---|---|---|---|
| Flow Q (l/min) | 0 | 33 | 67 | 100 |
| Head H (m) | 35 | 32.5 | 26.9 | 6 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo LGP10:
Leo LGP Gasoline Water Pump (2-stroke, 1"/1.5") – Performance Curves and Technical Data (02-GASOLINE WATER PUMP catalogue p4)
282 kB | Download
Applications
- To transfer clean water with liquid temperature between 0 and 40
- Applicable in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.
Features
- New unique design with ergonomic feature
- Portable and compact pump frame
- High quality engine with excellent performance and long service life
- Impeller designed with high efficient hydraulic system
- Low fuel consumption
Pump
- Anti-rust cast iron impeller and diffuser
- Max.Suction: 8 m, Suck 5 m needs 120 s
- Inlet/outlet: 25 mm / 38 mm
Engine
- Single cylinder, 2-stroke, Air-cooled
- Max.power: 1.6 HP
- Rated speed: 7500rpm
- Mixture ratio of fuel: 1:25 (2-stroke engine oil and 90 octane gasoline or higher)
Model Code: LGP10
- L - LEO Product Style
- GP - Gasoline Water Pump
- 10 - Inlet/Outlet Diameter (1")
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo LGP10?
The Leo LGP10 has a maximum head of 35 m.
How much water can the Leo LGP10 pump?
The Leo LGP10 pumps up to 6 m³/h (100 l/min).
What is the motor power of the Leo LGP10?
The motor power is 1.19 kW (1.6 HP).
What are the pipe connections of the Leo LGP10?
1".
