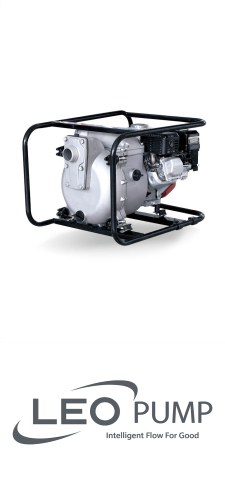

Leo LGP20-4G / 5HP Gasoline Pump And Engine

The LEO LGP20-4G is a 2" gasoline-engine water pump with a 5 HP 4-stroke engine, for portable water transfer, irrigation and dewatering where no electricity is available.

Application

• To transfer clean water or trash water with liquid temperature between 0 and 40
• Application in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.

Features

• Strengthened aluminium alloy pump body ensures more durable and reliable service
• Original design of the pump body for easy cleanout
• Impeller designed with high efficient hydraulic system
• Honda engine with excellent performance and long service life
• Better sealing effect by using special mechanical seal
• Low fuel consumption
• Honda Engine

Pump

• Aluminum alloy pump body
• Anti -rust cast iron impeller
• Max. suction: 8 m
• Rated suction: 5 m / 120 s
• Inlet/outlet: 50 mm / 50 mm , 80 mm / 80 mm
• Max.diameter of particle: 22 mm
• Liquid temperature range: 0 - 40

Engine

• Single cylinder,4-stroke, Air-cooled
• Max.power: 9 HP
• Displacement: 163 cc , 270 cc
• Rated speed: 3600 rpm

Identification Codes

• L - LEO Product Style
• GP - Gasoline Engine Pump
• 20 - Inlet/Outlet Diameter(2")
• T - Trash pump
