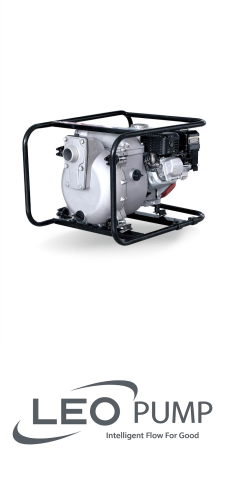

Leo LGP20-T / 5HP Gasoline Pump And Engine
15595
The LEO LGP20-T is a robust gasoline trash pump engineered to handle demanding water transfer applications where reliability and durability are essential. Powered by a dependable Honda engine, this 2-inch pump is purpose-built for transferring both clean water and trash water across factories, mines, municipal facilities, and field irrigation systems, making it an ideal choice for construction sites, dewatering operations, and emergency drainage scenarios.
Built with a strengthened aluminium alloy pump body and an anti-rust cast iron impeller, the LGP20-T delivers exceptional durability while maintaining easy maintenance through its original pump body design for convenient cleanout. The pump's high-efficiency hydraulic impeller system, reinforced mechanical seal, and 9 HP air-cooled engine combine to provide excellent fuel economy and consistent performance, while its 8-meter maximum suction capability and ability to handle particles up to 22 mm make it perfectly suited for real-world conditions where cleaner alternatives simply won't perform.
At a glance
Power: 3.73 kW (5 HP)Max. head: 25 mMax. flow: 40 m³/h (667 l/min)Connections: 2"Specifications
| Brand | Leo |
| Model | LGP20-T |
| Type | LGP-T Gasoline Trash Pump |
| Motor power | 3.73 kW (5 HP) |
| Inlet / outlet | 2" |
| Shut-off head | 25 m |
| Flow range | 0 – 40 m³/h (0 – 667 l/min) |
| Dimensions (W × L × H) | 50.2 × 67.5 × 44.6 cm |
| Weight | 48.8 kg |
| Item code | LGP20-T |
Performance Table
| Flow Q (m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 |
| Head H (m) | 25 | 24.1 | 22.5 | 20.6 | 18.6 | 16.1 | 13.5 | 10 | 6 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo LGP20-T:
Leo LGP-T Gasoline Trash Pump – Performance Curves and Technical Data (02-GASOLINE WATER PUMP catalogue p12)
299 kB | Download
Applications
- To transfer clean water or trash water with liquid temperature between 0 and 40
- Application in water supply and drainage for factories, mines, municipal facilities as well as field irrigation, etc.
Features
- Strengthened aluminium alloy pump body ensures more durable and reliable service
- Original design of the pump body for easy cleanout
- Impeller designed with high efficient hydraulic system
- Honda engine with excellent performance and long service life
- Better sealing effect by using special mechanical seal
- Low fuel consumption
- Honda Engine
Pump
- Aluminum alloy pump body
- Anti -rust cast iron impeller
- Max. suction: 8 m
- Rated suction: 5 m / 120 s
- Inlet/outlet: 50 mm / 50 mm , 80 mm / 80 mm
- Max.diameter of particle: 22 mm
- Liquid temperature range: 0 - 40
Engine
- Single cylinder,4-stroke, Air-cooled
- Max.power: 9 HP
- Displacement: 163 cc , 270 cc
- Rated speed: 3600 rpm
Model Code: LGP20-T
- L - LEO Product Style
- GP - Gasoline Engine Pump
- 20 - Inlet/Outlet Diameter(2")
- T - Trash pump
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo LGP20-T?
The Leo LGP20-T has a maximum head of 25 m.
How much water can the Leo LGP20-T pump?
The Leo LGP20-T pumps up to 40 m³/h (667 l/min).
What is the motor power of the Leo LGP20-T?
The motor power is 3.73 kW (5 HP).
What are the pipe connections of the Leo LGP20-T?
2".
