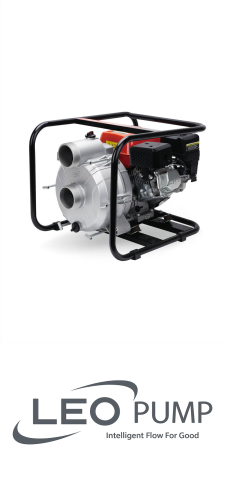

Leo LGP30-W / 6.5HP Gasoline Pump And Engine
15596
The LEO LGP30-W is a robust gasoline-powered sewage pump engineered to handle demanding slurry and debris-laden water transfer applications across civil engineering, mining, quarries, and municipal facilities. Designed for water supply, drainage, and field irrigation in industrial and construction environments, this 3-inch inlet/outlet pump efficiently transfers liquids containing mud, sand, and solids up to 22mm in diameter, making it indispensable for challenging pumping scenarios where standard equipment falls short.
Built around a reliable 4-stroke air-cooled gasoline engine delivering 6.5 HP at 3600 rpm, the LGP30-W combines durability with low maintenance through its anti-rust cast iron impeller and diffuser paired with a premium silicon carbide mechanical seal for superior abrasive resistance. Its compact, portable frame features a fully serviceable design that allows easy disassembly for debris removal and repairs, while the engine's integrated low oil shut-off system and efficient fuel consumption ensure dependable performance across extended operational periods in mines, factories, and remote field locations.
At a glance
Power: 4.85 kW (6.5 HP)Max. head: 30 mMax. flow: 60 m³/h (1000 l/min)Connections: 3"Specifications
| Brand | Leo |
| Model | LGP30-W |
| Type | LGP30-W Gasoline Sewage Pump |
| Motor power | 4.85 kW (6.5 HP) |
| Inlet / outlet | 3" |
| Shut-off head | 30 m |
| Flow range | 0 – 60 m³/h (0 – 1000 l/min) |
| Dimensions (W × L × H) | 45 × 60.5 × 45.9 cm |
| Weight | 34.6 kg |
| Item code | LGP30-W |
Performance Table
| Flow Q (m³/h) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 | 750 | 833 | 917 | 1000 |
| Head H (m) | 30 | 27 | 25.5 | 24 | 22 | 20.5 | 18.5 | 17 | 15.5 | 14.5 | 11.5 | 9.2 | 7 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo LGP30-W:
Leo LGP30-W Gasoline Sewage Pump – Performance Curves and Technical Data (02-GASOLINE WATER PUMP catalogue p11)
290 kB | Download
Applications
- Can be used to transfer slurry, liquids that containing mud, sand, small rocks and other debris diameter less than 22mm.
- Sewage treatment for civil engineering, mines, quarries and municipal facilities, etc.
- Water supply and drainage for factories, mins, municipal facilities as well as field irrigation, etc.
Features
- All new design with ergonomic feature
- Reliable 4-stroke gasoline engine with low fuel consumption and high quality crankshaft.
- Portable, durable and compact pump frame
- Durable sealing system with special mechanical seal
- Silicon carbide mechanical seal for increased abrasive resistance, longer life and less maintenance
- Pump body can easily disassembled and assembled for cleaning out debris, or pump repair
Pump
- Anti-rust cast iron impeller and diffuser
- Max.Suction: 8 m, Suck 5 m needs 120 s
- Inlet/outlet: 3"
- Max. diameter of particle: 22 mm
- Liquid temperature range: 0 degC ~ 40 degC
Engine
- Single cylinder, 4-stroke, Air-cooled
- Max.power: 6.5 HP
- Rated speed: 3600 rpm
- Reliable engine equiped with low engine oil shut off system
Model Code: LGP30-W
- L - LEO Product Style
- GP - Gasoline Sewage Pump
- 30 - Inlet/Outlet Diameter(3")
- W - Sewage
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo LGP30-W?
The Leo LGP30-W has a maximum head of 30 m.
How much water can the Leo LGP30-W pump?
The Leo LGP30-W pumps up to 60 m³/h (1000 l/min).
What is the motor power of the Leo LGP30-W?
The motor power is 4.85 kW (6.5 HP).
What are the pipe connections of the Leo LGP30-W?
3".
