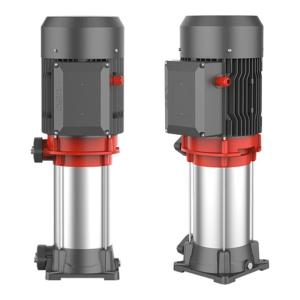

Leo EVP2-13 / 2.2KW 400V Vertical Multistage Pump And Motor
15611
Introducing the LEO EVP2-13, a compact vertical multistage pump engineered for domestic and commercial water supply and pressure boosting. Rated for 2 m3/h flow and featuring 13 impeller stages, it delivers stable output in demanding installations. The cast iron inlet/outlet with anti-rust treatment and stainless steel shaft ensure durability and reliable service life.
At a glance
Power: 2.2 kW (3 HP)Supply: 400 V three-phase, 50 HzMax. head: 153 mMax. flow: 4 m³/h (67 l/min)Connections: G1Specifications
| Brand | Leo |
| Model | EVP2-13 |
| Type | EVP2 Vertical Multistage Pump |
| Motor power | 2.2 kW (3 HP) |
| Supply | 400 V three-phase, 50 Hz |
| Inlet / outlet | G1 |
| Shut-off head | 153 m |
| Flow range | 0 – 4 m³/h (0 – 67 l/min) |
| Dimensions (W × L × H) | 20 × 25 × 90.5 cm |
| Weight | 41.4 kg |
| Item code | EVP2-13(380V) |
Performance Table
| Flow Q (m³/h) | 0 | 1 | 2 | 3 | 4 |
|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 17 | 33 | 50 | 67 |
| Head H (m) | 153 | 142 | 115 | 80 | 39 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo EVP2-13:
Leo EVP2 / EVP4 / EVP6 / EVP6H / EVP10H Vertical Multistage Pump – Performance Curves and Technical Data (04-COMMERCIAL PUMP catalogue p32)
460 kB | Download
Applications
- Water supply: Pressure boosting for main pipes and high-rise buildings.
- Industrial pressure boosting: Water systems, cleaning systems, high pressure washing and firefighting.
- Pressure boosting for pressure tanks, sprinkler irrigation and trickle irrigation.
- Air conditioner, cooling systems and industrial cleaning.
Features
- Economic vertical multistage pump design.
- Applicable for a wide scope of different temperatures, flow rates and pressure ranges.
- Water inlet and outlet can be rotated for proper assembly in accordance with installation requirements.
- Easy installation and maintenance.
- Advanced hydraulic model design featuring stable operation and high efficiency.
- Cast iron water inlet and outlet with special anti-rust treatment.
- High-strength engineering plastic flow passage components.
- Reliable stainless steel welded shaft.
Working Conditions
- Liquid temperature: +5 degC ~ +75 degC
- Max. ambient temperature: +40 degC
- Max. operating pressure: 15 bar
- Altitude: up to 1000 m
- Standard voltage: Single-phase 220-240V/50Hz; Three-phase 380-415V/50Hz
Model Code: EVP2-13(380V)
- EVP - Vertical Multistage Centrifugal Pump
- m - Single Phase (three-phase model without m)
- First number - Rated Flow (m3/h)
- Second number - Impeller Stage
- H - High Head variant
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo EVP2-13?
The Leo EVP2-13 has a maximum head of 153 m.
How much water can the Leo EVP2-13 pump?
The Leo EVP2-13 pumps up to 4 m³/h (67 l/min).
What power supply does the Leo EVP2-13 need?
Supply: 400 V three-phase, 50 Hz. Motor power: 2.2 kW (3 HP).
What are the pipe connections of the Leo EVP2-13?
G1.
