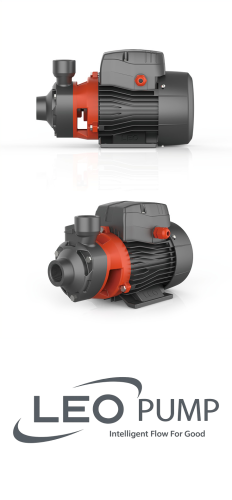

Leo APm75H / 0.75KW 230V Peripheral Pump And Motor
15624
The LEO APm75H is a robust peripheral pump engineered for reliable water transfer and circulation in residential and light commercial applications. This single-phase motor pump is ideally suited for small-scale domestic water supply, automatic garden sprinkler systems, and compact air conditioning units, delivering consistent performance for everyday pumping tasks with clean water and similar liquids.
Built with durability in mind, the APm75H features a specially treated cast iron pump body with anti-rust protection and a corrosion-resistant AISI 304 stainless steel shaft, while its brass impeller incorporates an anti-block system for trouble-free operation. The copper-wound motor combines low-noise performance with extended bearing life and includes integrated thermal protection, operating efficiently in ambient temperatures up to 50 degC and handling liquids as warm as 85 degC, making it an excellent choice for continuous household and small industrial circulation demands.
At a glance
Power: 0.75 kW (1 HP)Supply: 230 V single-phase, 50 HzMax. head: 105 mMax. flow: 2.1 m³/h (35 l/min)Connections: 3/4"Specifications
| Brand | Leo |
| Model | APm75H |
| Type | APm..H High Head Peripheral Pump |
| Motor power | 0.75 kW (1 HP) |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 3/4" |
| Shut-off head | 105 m |
| Flow range | 0 – 2.1 m³/h (0 – 35 l/min) |
| Dimensions (W × L × H) | 19 × 33.5 × 22 cm |
| Weight | 11.5 kg |
| Item code | APm75H(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 |
|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| Head H (m) | 105 | 85 | 70 | 60 | 40 | 30 | 20 | 10 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo APm75H:
Leo APm..H High Head Peripheral Pump – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p9)
279 kB | Download
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
Pump
- Special anti-rust treatment for cast iron pump body and support
- Anti-block system for impeller
- Brass impeller
- AISI 304 shaft
- Max. liquid temperature: +85 degC
- Max. suction: +8 m
Motor
- Low noise&Long life bearing
- Motor with cooper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max. ambient temperature: +50 degC
Model Code: APm75H(220V)
- A - LEO Product Style
- P - Peripheral Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 75 - Power (X10 W)
- H - High head
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo APm75H?
The Leo APm75H has a maximum head of 105 m.
How much water can the Leo APm75H pump?
The Leo APm75H pumps up to 2.1 m³/h (35 l/min).
What power supply does the Leo APm75H need?
Supply: 230 V single-phase, 50 Hz. Motor power: 0.75 kW (1 HP).
What are the pipe connections of the Leo APm75H?
3/4".
