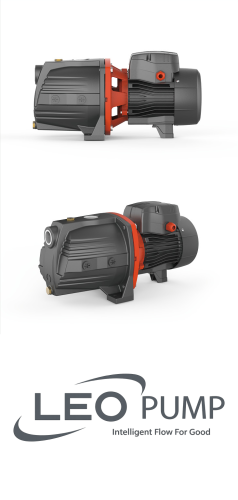

Leo AJm150 / 1.5KW 230V Jet Pump And Motor
15627
Introducing the LEO AJm150, a robust jet pump from the acclaimed AJm Jet Pump 2 series designed for reliable water transfer and pressure boosting applications. This single-phase jet pump excels at lifting water from wells, supporting garden irrigation systems, and enhancing mains water pressure in residential and light commercial settings where consistent performance is essential.
Built with durability in mind, the AJm150 features a cast iron pump body with specialized anti-rust treatment paired with a stainless steel impeller and AISI 304 shaft for long-lasting corrosion resistance. Its copper-wound motor incorporates low-noise bearings, built-in thermal protection, and an IPX4 enclosure rating, making it ideal for both indoor and outdoor installations where it can handle clean water and compatible liquids up to 60 degC with a maximum suction lift of 9 meters.
At a glance
Power: 1.5 kW (2 HP)Supply: 230 V single-phase, 50 HzMax. head: 60 mMax. flow: 6 m³/h (100 l/min)Connections: 1 1/4"Specifications
| Brand | Leo |
| Model | AJm150 |
| Type | AJm 1.1-2.2 kW Jet Pump (H / standard / L) |
| Motor power | 1.5 kW (2 HP) |
| Supply | 230 V single-phase, 50 Hz |
| Inlet / outlet | 1 1/4" |
| Shut-off head | 60 m |
| Flow range | 0 – 6 m³/h (0 – 100 l/min) |
| Dimensions (W × L × H) | 22.5 × 57.2 × 25.9 cm |
| Weight | 25.4 kg |
| Item code | AJm150(220V) |
Performance Table
| Flow Q (m³/h) | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.6 | 4.2 | 4.8 | 6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Q (l/min) | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 |
| Head H (m) | 60 | 56 | 55 | 53 | 52 | 49 | 48 | 46 | 45 | 44 | 42 | 40 | 36 | 33 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Leo AJm150:
Leo AJm 1.1-2.2 kW Jet Pump (H / standard / L) – Performance Curves and Technical Data (01-DOMESTIC PUMP catalogue p21)
346 kB | Download
Applications
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
Pump
- Cast iron pump body and support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
- Max. liquid temperature: +60ºC
- Max. suction: +9 m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max.ambient temperature: +50 ºC
Model Code: AJm150(220V)
- A - LEO Product Style
- J - Jet Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 110 - Power (x10W)
- L - Large Flow
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Leo AJm150?
The Leo AJm150 has a maximum head of 60 m.
How much water can the Leo AJm150 pump?
The Leo AJm150 pumps up to 6 m³/h (100 l/min).
What power supply does the Leo AJm150 need?
Supply: 230 V single-phase, 50 Hz. Motor power: 1.5 kW (2 HP).
What are the pipe connections of the Leo AJm150?
1 1/4".
