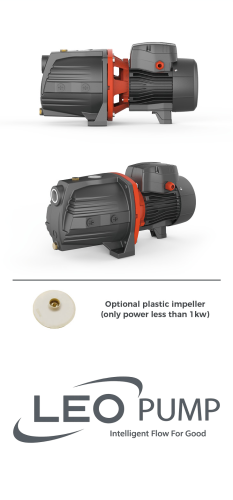

Leo AJm75(230V)-PPO / 0.75KW 230V Jet Pump And Motor
15628
The LEO AJm75-PPO is the 0.75 kW 230V AJm75 self-priming jet pump in the PPO (engineering-plastic) execution. It lifts water from shallow wells and tanks and boosts pressure for homes and gardens.
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
Pump
- Cast iron pump body and support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
- Max. liquid temperature: +60 degC
- Max. suction: +9 m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max.ambient temperature: +50 degC
Identification Codes
- A - LEO Product Style
- J - Jet Pump
- m - Single Phase Motor (Omitted for three-phase motor)
- 30 - Power (x10W)
- H - High Head
Performance table
| Flow Q (m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.8 | 3 | 3.3 | 3.6 | 3.9 |
| Head H (m) | 40 | 38 | 36 | 34.5 | 33 | 31.5 | 30 | 29 | 28 | 27 | 26 | 25 | 24 | 23 |
Source: LEO AJm jet pump technical data, 50 Hz.
