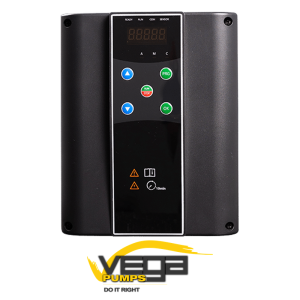

Vega AR200 Intelligent Pump Controller 2.2kW (230V 3-Phase)
16047
The Vega AR200 AR200-22L23 is a compact variable speed intelligent pump controller for 2.2 kW pumps on 230 V three-phase supply. It turns a standard pump into a constant-pressure booster with soft start, dry-run protection and quiet, efficient running. Pump not included.
At a glance
Power: 2.2 kWSupply: 230V single-phase in, 220V three-phase out (F0022L23)Specifications
| Brand | Vega |
| Item code | 20030066 |
| Model | AR200-22L23 |
| Motor power | 2.2 kW |
| Supply | 230V single-phase in, 220V three-phase out (F0022L23) |
| Control | Current-vector VFD dedicated to water pumps (SVC / FVC / V/F) |
| Drives | Induction and synchronous (PM) motors |
| Pressure accuracy | 0.01 MPa |
| Frequency range | 0-300 Hz vector, 0-3200 Hz V/F |
| Inputs / outputs | 4 digital inputs, 2 relay outputs, 2 analogue 4-20 mA inputs |
| Communication | Keypad, terminals, optional 4G / WiFi |
| Protection | Input/output phase loss, over current, over/under voltage, overheat, overload, dry run |
| Enclosure | R202: 210 x 170 x 111 mm |
| Dimensions (W × L × H) | 23 × 27 × 18 cm |
| Weight | 2.7 kg |
Features
- Turns a standard pump into a constant-pressure booster
- Soft start and stop, quiet running
- Dry-run and overload protection
- Quick cascade of two pumps
- Use with a 5-way connector, pressure gauge and 2-3 L pressure tank
Dimensions & Weight
| Parameter | Value |
|---|---|
| Enclosure (W x d x h) | 210 x 170 x 111 mm |
| Estimated weight | about 2 kg |
Specifications from the Vega AR200 Intelligent Pump Controller datasheet 24-01. Values marked estimated or about are approximate; confirm critical dimensions before installation.
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What power supply does the Vega AR200 Intelligent Pump Controller 2.2kW (230V 3-Phase) need?
Supply: 230V single-phase in, 220V three-phase out (F0022L23). Motor power: 2.2 kW.
What is the part / item code of the Vega AR200 Intelligent Pump Controller 2.2kW (230V 3-Phase)?
The item code is 20030066.
