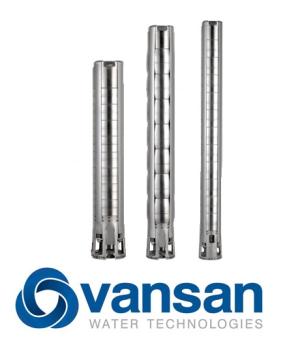

Vansan VSP 6010-27 – 11kW Stainless Steel 6" Submersible Borehole Pump
16294
Vansan VSP 6010-27 – 11kW Stainless Steel 6" Submersible Borehole Pump
Vansan VSP stainless steel 6" submersible borehole pumps (144 mm) for farm, irrigation and bulk water supply from 150 mm and larger boreholes. Stainless steel impellers and diffusers; the pump end couples to a 6" water-filled motor (sold separately).
Model specifications
| Nominal flow | 10 m³/h |
| Stages | 27 |
| Motor power | 11 kW |
| Horsepower | 15 HP |
| Outlet | 65mm |
| Packed size (L x W x H) | 229 x 18 x 18 cm |
| Shipping weight | 50.3 kg (approx.) |
Range specifications
| Range power | 0.55 - 45 kW |
| Nominal diameter | 6" (144 mm) |
| Range flow | 10 - 72 m³/h |
| Range max head | 491 m |
| Outlets | 65 - 100 mm (2½" - 4") |
| Impeller / diffuser | Stainless steel |
Features
- Model code: VSP SS 6030-07 = 6" pump, nominal capacity 30 m³/h, 7 stages
