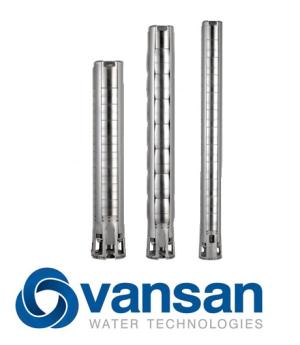

Vansan VSP 7095-13 – 67kW Stainless Steel 7" Submersible Borehole Pump
16312
Vansan VSP 7095-13 – 67kW Stainless Steel 7" Submersible Borehole Pump
Vansan VSP stainless steel 7" submersible borehole pumps (172 mm) for high-flow irrigation and bulk water supply.
Model specifications
| Nominal flow | 95 m³/h |
| Stages | 13 |
| Motor power | 67 kW |
| Horsepower | 90 HP |
| Outlet | 125mm |
| Packed size (L x W x H) | 170 x 21 x 21 cm |
| Shipping weight | 72.6 kg (approx.) |
Range specifications
| Range power | 4 - 110 kW |
| Nominal diameter | 7" (172 mm) |
| Range flow | 20 - 125 m³/h |
| Range max head | 550 m |
| Outlet | 5" (127 mm) |
| Impeller / diffuser | Stainless steel |
Features
- Model code: VSP SS 7075-07 = 7" pump, nominal capacity 75 m³/h, 7 stages
