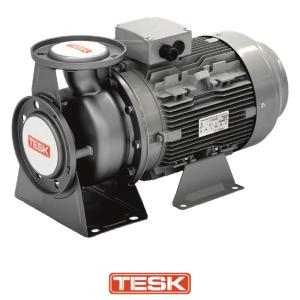

Tesk SMD 50-32-160 – 1.5kW 400V Stainless Steel Close-Coupled Centrifugal Pump
16737
Tesk SMD 50-32-160 – 1.5kW 400V Stainless Steel Close-Coupled Centrifugal Pump
Tesk SMD close-coupled horizontal single-stage centrifugal pumps in 304 stainless steel with an IE3 aluminium motor.
Model specifications
| Suction / discharge | DN50 / DN32 |
| Impeller diameter | 160 mm |
| Motor power | 1.5 kW |
| Packed size (L x W x H) | 48 x 32 x 35 cm |
| Shipping weight | 26 kg (approx.) |
Range specifications
| Range power | 1.1 - 37 kW |
| Range max flow | 21 - 200 m³/h |
| Range max head | 29 - 72 m |
| Outlet sizes | 32 - 100 mm |
| Supply | 400V 3-phase |
Features
- Model code: SMD 65-50-160 = suction DN65, discharge DN50, impeller 160 mm
- 304 stainless steel, IE3 aluminium motor
Applications
- Irrigation
- Water supply
- Water treatment
- Liquid transport
- Industrial boosting
