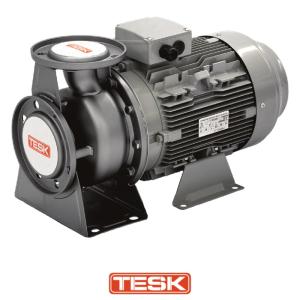

Tesk SMD 65-50-200 – 15kW 400V Stainless Steel Close-Coupled Centrifugal Pump
16752
Tesk SMD 65-50-200 – 15kW 400V Stainless Steel Close-Coupled Centrifugal Pump
Tesk SMD close-coupled horizontal single-stage centrifugal pumps in 304 stainless steel with an IE3 aluminium motor.
At a glance
Power: 15 kWSupply: 400V 3-phaseMax. head: 61.2 mMax. flow: 59 m³/hConnections: DN65 / DN50Best for: Irrigation, Water supply, Water treatmentSpecifications
| Brand | Tesk |
| Item code | SMD 65-50-200-15 |
| Model | SMD 65-50-200 |
| Suction / discharge | DN65 / DN50 |
| Impeller diameter | 200 mm |
| Motor power | 15 kW |
| Packed size (L x W x H) | 75 x 32 x 35 cm |
| Shipping weight | 100 kg (approx.) |
| Range power | 1.1 - 37 kW |
| Range max flow | 21 - 200 m³/h |
| Range max head | 29 - 72 m |
| Outlet sizes | 32 - 100 mm |
| Supply | 400V 3-phase |
| Dimensions (W × L × H) | 32 × 75 × 35 cm |
Performance Table
| Flow (m³/h) | 20 | 39.5 | 59 |
|---|---|---|---|
| Head (m) | ≈ 61.2 | ≈ 56.2 | ≈ 49.1 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Tesk SMD 65-50-200:
Tesk SMD Horizontal Centrifugal Pumps
743 kB | Download
Applications
- Irrigation
- Water supply
- Water treatment
- Liquid transport
- Industrial boosting
Features
- Model code: SMD 65-50-160 = suction DN65, discharge DN50, impeller 160 mm
- 304 stainless steel, IE3 aluminium motor
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Tesk SMD 65-50-200?
The Tesk SMD 65-50-200 has a maximum head of 61.2 m.
How much water can the Tesk SMD 65-50-200 pump?
The Tesk SMD 65-50-200 pumps up to 59 m³/h.
What power supply does the Tesk SMD 65-50-200 need?
Supply: 400V 3-phase. Motor power: 15 kW.
What are the pipe connections of the Tesk SMD 65-50-200?
DN65 / DN50.
