Franklin Electric 200mm (8”) 304 Stainless Steel Encapsulated Submersible Motor / 90kW 400V 3 Phase DOL

Price Unavailable - Please contact us for a quote.

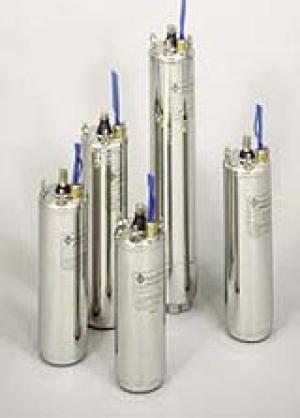

Franklin Electric 200mm (8”) 304 Stainless Steel Encapsulated Submersible Motor / 90kW 400V 3 Phase DOL image 1

The Franklin Electric 200mm (8") 304 Stainless Steel Encapsulated Submersible Motor / 90kW 400V 3 Phase DOL is a 200mm (8") 304 Stainless Steel Encapsulated submersible borehole motor for 400V 3 Phase DOL supply.

Applications

  • Drives Franklin Electric SVM, SS-Series and FS-Series pump ends
  • Any NEMA-standard submersible borehole pump end
  • Domestic, agricultural, municipal, mining and industrial boreholes

Features

  • Hermetically sealed, encapsulated stator or rewindable wet-wound design
  • Water-lubricated bearings and Kingsbury-type thrust bearing
  • Sand slinger and mechanical seal protect the bearings
  • NEMA-standard coupling fits SVM, SS-Series, FS-Series and other NEMA pump ends
  • Manufactured to ISO 9001 standards

Specifications

ParameterValue
BrandFranklin Electric
Item code2391058504
TypeSubmersible borehole motor
Motor size200mm (8")
Construction304 Stainless Steel Encapsulated
Rated power90 kW
Supply voltage400V
Starting3 Phase DOL
CouplingNEMA standard
Frequency50 Hz

Single-phase motors require the matching Franklin Electric control box. Three-phase motors require a starter or protection panel.
