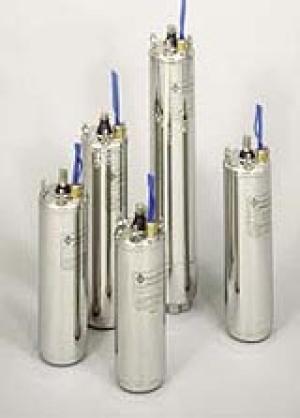

Franklin Electric 200mm (8”) 304 Stainless Steel Encapsulated Submersible Motor / 130kW 400V 3 Phase Star-Delta
17206Price Unavailable - Please contact us for a quote.NewIn stock! Order now!
The Franklin Electric 200mm (8") 304 Stainless Steel Encapsulated Submersible Motor / 130kW 400V 3 Phase Star-Delta is a 200mm (8") 304 Stainless Steel Encapsulated submersible borehole motor for 400V 3 Phase Star-Delta supply.
Applications
- Drives Franklin Electric SVM, SS-Series and FS-Series pump ends
- Any NEMA-standard submersible borehole pump end
- Domestic, agricultural, municipal, mining and industrial boreholes
Features
- Hermetically sealed, encapsulated stator or rewindable wet-wound design
- Water-lubricated bearings and Kingsbury-type thrust bearing
- Sand slinger and mechanical seal protect the bearings
- NEMA-standard coupling fits SVM, SS-Series, FS-Series and other NEMA pump ends
- Manufactured to ISO 9001 standards
Specifications
| Parameter | Value |
|---|---|
| Brand | Franklin Electric |
| Item code | 2391278604 |
| Type | Submersible borehole motor |
| Motor size | 200mm (8") |
| Construction | 304 Stainless Steel Encapsulated |
| Rated power | 130 kW |
| Supply voltage | 400V |
| Starting | 3 Phase Star-Delta |
| Coupling | NEMA standard |
| Frequency | 50 Hz |
Single-phase motors require the matching Franklin Electric control box. Three-phase motors require a starter or protection panel.
