Franklin Electric 200mm (8”) Rewindable Wet Wound PE2PA Submersible Motor / 55kW 525V 3 Phase DOL

Price Unavailable - Please contact us for a quote.

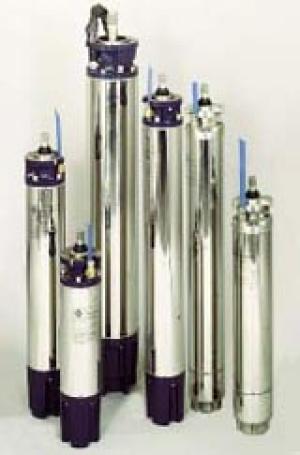

Franklin Electric 200mm (8”) Rewindable Wet Wound PE2PA Submersible Motor / 55kW 525V 3 Phase DOL image 1

The Franklin Electric 200mm (8") Rewindable Wet Wound PE2PA Submersible Motor / 55kW 525V 3 Phase DOL is a 200mm (8") Rewindable Wet Wound PE2PA submersible borehole motor for 525V 3 Phase DOL supply.

Applications

  • Drives Franklin Electric SVM, SS-Series and FS-Series pump ends
  • Any NEMA-standard submersible borehole pump end
  • Domestic, agricultural, municipal, mining and industrial boreholes

Features

  • Hermetically sealed, encapsulated stator or rewindable wet-wound design
  • Water-lubricated bearings and Kingsbury-type thrust bearing
  • Sand slinger and mechanical seal protect the bearings
  • NEMA-standard coupling fits SVM, SS-Series, FS-Series and other NEMA pump ends
  • Manufactured to ISO 9001 standards

Specifications

ParameterValue
BrandFranklin Electric
Item code2635235311
TypeSubmersible borehole motor
Motor size200mm (8")
ConstructionRewindable Wet Wound PE2PA
Rated power55 kW
Supply voltage525V
Starting3 Phase DOL
CouplingNEMA standard
Frequency50 Hz

Single-phase motors require the matching Franklin Electric control box. Three-phase motors require a starter or protection panel.
