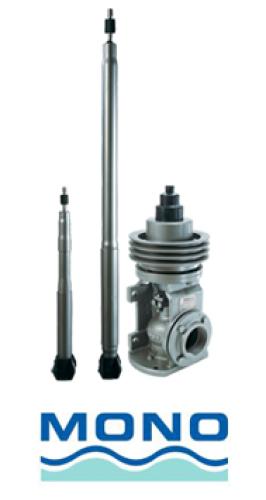

Mono BP16L Borehole Pump Element / 19mm Shaft, 65mm Outlet
17666
The Mono BP16L is a Mono BP16L progressive cavity (helical rotor) borehole pump element for a 19mm line shaft and 65mm column.
At a glance
Power: 0.9 kW at 0 m to 4.5 kW at 75 mMax. head: 75 mMax. flow: 16.1 m³/hConnections: 65 mmBest for: Deep and low-yield boreholes, Sandy, silty and gassy water, Farm, village and stock-water supplySpecifications
| Brand | Mono |
| Item code | 00745 |
| Model | Mono BP16L |
| Type | Progressive cavity (helical rotor) borehole pump element – line-shaft driven from the surface (discharge head, column pipe, line shaft and drive sold separately) |
| Line shaft | 19 mm |
| Column / outlet | 65 mm |
| Column and shaft options | 65 mm column with 19 mm line shaft |
| Discharge head | Monomeester |
| Maximum drive power | 5.5 kW |
| Maximum head | 75 m |
| Speed range | 500–1500 rpm (electric motor, engine or windmill drive through the discharge head) |
| Flow at top speed | 16.1 m³/h at 0 m to 14 m³/h at 75 m (1500 rpm) |
| Flow at lowest speed | 5.5 m³/h at 0 m to 3.3 m³/h at 75 m (500 rpm) |
| Power at top speed | 0.9 kW at 0 m to 4.5 kW at 75 m |
| Minimum motor size | 3 kW |
| Minimum starting torque | 20 Nm |
| Rotor / stator | Hard-chrome rotor, moulded nitrile stator, tested on water at 20 °C |
| Equivalent | Orbit GW1201 |
Performance Table
| Head (m) | 0 | 19 | 38 | 56 | 75 |
|---|---|---|---|---|---|
| Flow at 1500 rpm (m³/h) | 16.1 | 15.6 | 15 | 14.5 | 14 |
| Flow at 500 rpm (m³/h) | 5.5 | 4.9 | 4.4 | 3.9 | 3.3 |
| Power at 1500 rpm (kW) | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Mono BP16L Borehole Pump Element:
Mono BP16L Performance Curve
82 kB | Download
Applications
- Deep and low-yield boreholes
- Sandy, silty and gassy water
- Farm, village and stock-water supply
- Windmill, engine or electric-motor driven installations
Features
- Positive displacement helical rotor and stator – steady flow at any depth
- Hard-chrome rotor and moulded nitrile stator
- Handles sand and abrasive water that damages centrifugal pumps
- Driven from surface by a line shaft – no motor in the borehole
- Proven Mono/Orbit design
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Mono BP16L Borehole Pump Element?
The Mono BP16L Borehole Pump Element has a maximum head of 75 m.
How much water can the Mono BP16L Borehole Pump Element pump?
The Mono BP16L Borehole Pump Element pumps up to 16.1 m³/h.
What is the motor power of the Mono BP16L Borehole Pump Element?
The motor power is 0.9 kW at 0 m to 4.5 kW at 75 m.
What are the pipe connections of the Mono BP16L Borehole Pump Element?
65 mm.
