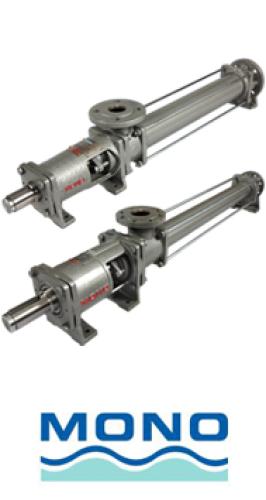

Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump / 50mm BS4504 Flanges
17677
The Mono HD45M Mk2 is a Mono HD45M Mk2 horizontal high-head progressive cavity pump.
At a glance
Power: 1.3 kW at 0 m to 5.7 kW at 150 mMax. head: 150 mMax. flow: 11.6 m³/hConnections: 50 mm BS 4504 flangesBest for: High-pressure water transfer over long distances, Irrigation from rivers, dams and tanks, Filling reservoirs and pipelinesSpecifications
| Brand | Mono |
| Item code | 830009439 |
| Model | Mono HD45M Mk2 |
| Type | Horizontal high-head progressive cavity pump (bareshaft – motor, drive and baseplate sold separately) |
| Inlet / outlet | 50 mm BS 4504 flanges |
| Maximum differential head | 150 m |
| Speed range | 900–1500 rpm (belt drive or direct coupled 4-pole motor) |
| Flow at top speed | 11.6 m³/h at 0 m to 10.7 m³/h at 150 m (1500 rpm) |
| Flow at lowest speed | 6.7 m³/h at 0 m to 5.7 m³/h at 150 m (900 rpm) |
| Power at top speed | 1.3 kW at 0 m to 5.7 kW at 150 m |
| Minimum motor size | 3 kW |
| Minimum starting torque | 18 Nm |
| NPSH required | 2.3 m at half flow, 6.5 m at full flow |
| Rotation | Counter-clockwise only, delivery on the gland side |
| Rotor / stator | Nitrile rubber stator, tested on water at 20 °C |
| Equivalent | Orbit PP0802 Mk2 power pump |
Performance Table
| Head (m) | 0 | 38 | 75 | 112 | 150 |
|---|---|---|---|---|---|
| Flow at 1500 rpm (m³/h) | 11.6 | 11.4 | 11.1 | 10.9 | 10.7 |
| Flow at 900 rpm (m³/h) | 6.7 | 6.4 | 6.2 | 6 | 5.7 |
| Power at 1500 rpm (kW) | 1.3 | 2.4 | 3.5 | 4.6 | 5.7 |
| NPSH required at 1500 rpm (m) | 6.5 | 6.5 | 6.5 | 6.4 | 6.1 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump:
Mono HD45M Mk2 Performance Curve and NPSH
463 kB | Download
Applications
- High-pressure water transfer over long distances
- Irrigation from rivers, dams and tanks
- Filling reservoirs and pipelines
Features
- Positive displacement helical rotor – high pressure at low flow
- Bearing housing with solid drive shaft
- Flanged ports to BS 4504
- Handles silty and sandy water
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump?
The Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump has a maximum head of 150 m.
How much water can the Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump pump?
The Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump pumps up to 11.6 m³/h.
What is the motor power of the Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump?
The motor power is 1.3 kW at 0 m to 5.7 kW at 150 m.
What are the pipe connections of the Mono HD45M Mk2 HD High Head Horizontal Progressive Cavity Pump?
50 mm BS 4504 flanges.
