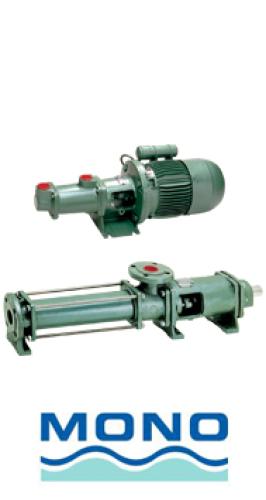

Mono S72M M-Range Stainless Steel Progressive Cavity Pump with Viton Stator (0317R)
17837
The Mono S72M is a Mono S72M M-Range industrial progressive cavity pump.
At a glance
Max. flow: up to 24 m³/h at maximum speed (Mono industrial typical performance guide, hydraulic size C72M)Connections: BS 4504 flanged ports as standard (see the M-range dimension sheet)Best for: Sludge, slurry and effluent handling, Viscous, abrasive and shear-sensitive products, Food, chemical, mining and wastewater plantsSpecifications
| Brand | Mono |
| Item code | 830010253 |
| Model | Mono S72M |
| Range | M-Range industrial progressive cavity pump (bareshaft – motor, drive and baseplate sold separately) |
| Build | Stainless Steel Progressive Cavity Pump with Viton Stator (0317R) |
| Material | Stainless steel pump body |
| Type | Positive displacement helical rotor (progressive cavity) pump – flow proportional to speed, pressure independent of speed, uniform non-pulsating flow, low shear, self-priming |
| Maximum differential pressure | 12 bar (≈ 122.4 m head) |
| Flow | up to 24 m³/h at maximum speed (Mono industrial typical performance guide, hydraulic size C72M) |
| Speed | Flow is proportional to speed – geared motor, V-drive or variable speed; select the speed for your duty |
| Rotation | Reversible |
| Rotor / stator | Hard chrome-plated EN8 rotor (stainless options as stated), nitrile stator (natural, hypalon or viton on request) |
| Ports | BS 4504 flanged ports as standard (see the M-range dimension sheet) |
| Sealing | Standard sealed universal joints; packed gland or mechanical seal |
| Product temperature | Up to 50 °C with standard stator |
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Mono S72M M-Range Stainless Steel Progressive Cavity Pump with Viton Stator (0317R):
Mono Industrial Range Brochure
828 kB | Download
Mono M Range Dimensions
342 kB | Download
Applications
- Sludge, slurry and effluent handling
- Viscous, abrasive and shear-sensitive products
- Food, chemical, mining and wastewater plants
Features
- Positive displacement – flow proportional to speed
- Gentle, low-shear pumping action
- Cast iron or stainless steel construction as stated
- Rotor and stator options for abrasive or chemical duties
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
How much water can the Mono S72M M-Range Stainless Steel Progressive Cavity Pump with Viton Stator (0317R) pump?
The Mono S72M M-Range Stainless Steel Progressive Cavity Pump with Viton Stator (0317R) pumps up to up to 24 m³/h at maximum speed (Mono industrial typical performance guide, hydraulic size C72M).
What are the pipe connections of the Mono S72M M-Range Stainless Steel Progressive Cavity Pump with Viton Stator (0317R)?
BS 4504 flanged ports as standard (see the M-range dimension sheet).
