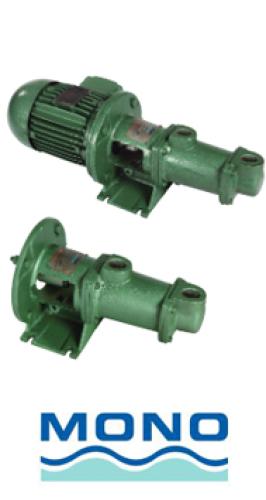

Mono GA G-Range Progressive Cavity Pump - Bareshaft
17877
The Mono GA is a Mono GA G-Range industrial progressive cavity pump – Bareshaft.
At a glance
Max. flow: up to 140 l/h (0.1 m³/h) – Mono G range typical performance guideBest for: Sludge, slurry and effluent handling, Viscous, abrasive and shear-sensitive products, Food, chemical, mining and wastewater plantsSpecifications
| Brand | Mono |
| Item code | 10953 |
| Model | Mono GA |
| Range | G-Range compact progressive cavity pump for free-flowing liquids and light solids-in-suspension |
| Build | Bareshaft |
| Type | Positive displacement helical rotor (progressive cavity) pump – uniform flow with minimal pulsation, self-priming with good suction |
| Maximum differential pressure | 5 bar (≈ 51 m head) |
| Flow | up to 140 l/h (0.1 m³/h) – Mono G range typical performance guide |
| NPSH required | See the NPSH curve sheet below (clean water at 20 °C) |
| Drive | Flange-mounted four- or six-pole motor, 220 / 380 / 525 V, or bareshaft for V-drive / geared motor |
| Construction | Close-grain cast iron body, EN57 corrosion-resistant rotor, moulded rubber stator (chemical / abrasion-resistant grades available) |
| Sealing | Packed gland or mechanical seal |
| Product temperature | Up to 50 °C |
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Mono GA G-Range Progressive Cavity Pump - Bareshaft:
Mono GA Performance Curve and NPSH
33 kB | Download
Mono Industrial Range Brochure
828 kB | Download
Applications
- Sludge, slurry and effluent handling
- Viscous, abrasive and shear-sensitive products
- Food, chemical, mining and wastewater plants
Features
- Positive displacement – flow proportional to speed
- Gentle, low-shear pumping action
- Cast iron or stainless steel construction as stated
- Rotor and stator options for abrasive or chemical duties
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
How much water can the Mono GA G-Range Progressive Cavity Pump - Bareshaft pump?
The Mono GA G-Range Progressive Cavity Pump - Bareshaft pumps up to up to 140 l/h (0.1 m³/h) – Mono G range typical performance guide.
What is the part / item code of the Mono GA G-Range Progressive Cavity Pump - Bareshaft?
The item code is 10953.
