Wilo Jet WJ 203 X (3~230/400 V) / 0.75kW Self-Priming Stainless Steel Jet Pump

R 3,674.25 incl. VATAdd to Basket

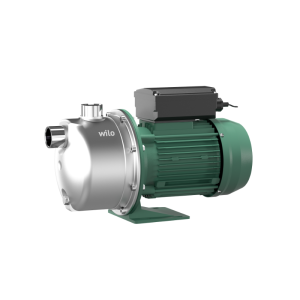

Wilo Jet WJ 203 X (3~230/400 V) / 0.75kW Self-Priming Stainless Steel Jet Pump image 1

The Wilo Jet WJ 203 X (3~230/400 V) is a self-priming stainless steel jet pump from the Wilo Jet WJ range with a 0.75 kW motor rating. Self-priming multistage centrifugal pumps.

At a glance

Power: 0.75 kWSupply: ±6 %Max. head: 42 mMax. flow: 4.99 m³/hConnections: G 1Best for: Pumping water from wells, Filling, pumping empty, transferring by pumping, irrigation and sprinkling, As emergency pump for overflows

Specifications

BrandWilo
Item code4212734
ModelJet WJ 203 X (3~230/400 V)
SeriesWilo Jet WJ
Typeself-priming stainless steel jet pump
Mains connection3~230 V, 3~400 V, 50 Hz
Rated power P20.75 kW
Min. fluid temperature Tmin5 °C
Max. fluid temperature Tmax35 °C
Min. ambient temperature Tmin-15 °C
Max. ambient temperature Tmax40 °C
Maximum operating pressure PN6 bar
Pipe connection, suction side DNsG 1
Pipe connection, discharge side DNdG 1
Voltage tolerance±6 %
Rated power P20.75 kW
Rated current IN3.1 A
Rated speed n2900 1/min
Insulation classB
Protection classIP44
Discharge portG 1
Pump housingStainless steel
ShaftStainless steel
Shaft sealCVPFF
Gasket materialNBR
ImpellerStainless steel
Dimensions (W × L × H)20 × 37.4 × 27.2 cm
Weight10.6 kg

Performance Table

Flow (m³/h)012344.99
Head (m)4234.928.123.317.53.84

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Jet WJ 203 X (3~230/400 V):



Wilo Jet WJ 203 X (3~230/400 V) Performance Curve (50 Hz)

22 kB  |  Download

Applications

  • Pumping water from wells
  • Filling, pumping empty, transferring by pumping, irrigation and sprinkling
  • As emergency pump for overflows

Features

  • User-friendly thanks to its light weight, compact size and practical carrying handle
  • High supply guarantee due to hydraulic output, self-priming up to 8 m (also at a low flow rate)
  • Robust stainless steel construction for durable operation, impeller, shaft and housing made of AISI 304
  • IE3-IEC three-phase AC motor (≥ 0.75 kW)

Dimensions & Weight

DimensionValue
Length L203 mm
Width W184 mm
Height H203 mm
Net weight (approx.)9.6 kg
Gross weight (approx.)10.6 kg
Length with packaging374 mm
Width with packaging200 mm
Height with packaging272 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Jet WJ 203 X (3~230/400 V)?

The Wilo Jet WJ 203 X (3~230/400 V) has a maximum head of 42 m.

How much water can the Wilo Jet WJ 203 X (3~230/400 V) pump?

The Wilo Jet WJ 203 X (3~230/400 V) pumps up to 4.99 m³/h.

What power supply does the Wilo Jet WJ 203 X (3~230/400 V) need?

Supply: ±6 %. Motor power: 0.75 kW.

What are the pipe connections of the Wilo Jet WJ 203 X (3~230/400 V)?

G 1.
