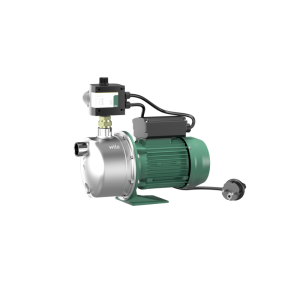

Wilo Jet FWJ 204 / 1kW Self-Priming Water Supply Unit
18529
The Wilo Jet FWJ 204 is a self-priming water-supply unit with HiControl from the Wilo Jet FWJ range with a 1 kW motor rating. Self-priming water-supply units.
Applications
- For pumping water and rainwater from wells and tanks for:
- Sprinkling
- Irrigation and spraying
Features
- Ideal for use in outside areas (hobby, garden) thanks to durable construction; continuously good performance thanks to corrosion-free materials
- Completely preassembled system, simple installation and maintenance through Plug&Pump system and 360° rotatable display, which means that it can be read from any direction
- Electronic pump control
- High operational reliability thanks to dry-running protection
- Optional carrying handle
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 2543631 |
| Model | Jet FWJ 204 |
| Series | Wilo Jet FWJ |
| Type | self-priming water-supply unit with HiControl |
| Connection | 1~230 V, 50 Hz |
| Rated power P2 (kW) | 1 |
| Maximum operating pressure PN | 6 bar |
| Discharge port | G 1 |
| Min. fluid temperature Tmin | 5 °C |
| Max. fluid temperature Tmax | 35 °C |
| Min. ambient temperature Tmin | 3 °C |
| Max. ambient temperature Tmax | 40 °C |
| Mains connection | 1~230 V, 50 Hz |
| Voltage tolerance | ±6 % |
| Power factor cos φ100 | 0.91 |
| Rated power P2 | 1 kW |
| Rated current IN | 6.2 A |
| Rated speed n | 2900 1/min |
| Insulation class | B |
| Protection class | IP44 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | CVPFF |
| Gasket material | NBR |
| Pipe connection, suction side DNs | G 1 |
| Pipe connection, discharge side DNd | G 1 |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 417 mm |
| Width W | 222 mm |
| Height H | 402 mm |
| Net weight (approx.) | 13.4 kg |
| Gross weight (approx.) | 17.7 kg |
| Length with packaging | 480 mm |
| Width with packaging | 280 mm |
| Height with packaging | 490 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
