Wilo HiPeri 1-4 / 0.37kW Peripheral Pump

R 1,276.50 incl. VATAdd to Basket

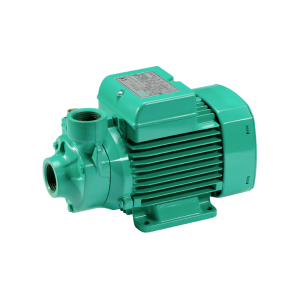

Wilo HiPeri 1-4 / 0.37kW Peripheral Pump image 1

The Wilo HiPeri 1-4 is a peripheral pump from the Wilo HiPeri range with a 0.37 kW motor rating. Non-self-priming peripheral pump.

At a glance

Power: 0.37 kWSupply: ±10 %Max. head: 36 mMax. flow: 2.4 m³/hConnections: Rp 1Best for: Water distribution/boosting, Raw water intake, Sprinkling and spraying

Specifications

BrandWilo
Item code4186197
ModelHiPeri 1-4
SeriesWilo HiPeri
Typeperipheral pump
Connection1~230 V, 50 Hz
Rated power P20.37 kW
Maximum operating pressure PN7 bar
Discharge portRp 1
Min. fluid temperature Tmin5 °C
Max. fluid temperature Tmax60 °C
Min. ambient temperature Tmin5 °C
Max. ambient temperature Tmax40 °C
Mains connection1~230 V, 50 Hz
Voltage tolerance±10 %
Rated power P20.37 kW
Rated current IN2.5 A
Rated speed n2900 1/min
Insulation classF
Protection classX4
Pump housingGrey cast iron
ImpellerBrass, CW617N
ShaftStainless steel
Shaft sealBVPFF
Gasket materialNBR
Pipe connection, suction side DNsRp 1
Pipe connection, discharge side DNdRp 1
Dimensions (W × L × H)13.2 × 22.6 × 16.6 cm
Weight5.2 kg

Performance Table

Flow (m³/h)0.30.50.7511.251.51.7522.252.4
Head (m)3632.628.32419.715.611.57.734.22.19

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo HiPeri 1-4:



Wilo HiPeri 1-4 Performance Curve (50 Hz)

19 kB  |  Download

Applications

  • Water distribution/boosting
  • Raw water intake
  • Sprinkling and spraying
  • Rainwater utilisation

Features

  • Easy handling due to its light weight, perfect for continuous operation
  • Brass impeller for fluids up to 60 °C and ambient temperatures up to 40 °C
  • Efficiently thanks to low power consumption with high maximum delivery head and high maximum volume flow
  • Up to 7 m negative suction head
  • Expandable with electronic control of pumps Wilo-HiControl 1

Dimensions & Weight

DimensionValue
Length L207 mm
Width W118 mm
Height H145 mm
Net weight (approx.)5 kg
Gross weight (approx.)5.2 kg
Length with packaging226 mm
Width with packaging132 mm
Height with packaging166 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo HiPeri 1-4?

The Wilo HiPeri 1-4 has a maximum head of 36 m.

How much water can the Wilo HiPeri 1-4 pump?

The Wilo HiPeri 1-4 pumps up to 2.4 m³/h.

What power supply does the Wilo HiPeri 1-4 need?

Supply: ±10 %. Motor power: 0.37 kW.

What are the pipe connections of the Wilo HiPeri 1-4?

Rp 1.
