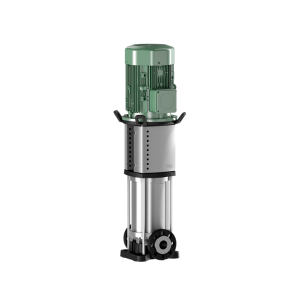

Wilo Helix V 204-1/16/E/S/400-50 / 0.37kW Vertical Multistage Pump
18533
The Wilo Helix V 204-1/16/E/S/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 0.37 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 0.37 kWSupply: ±10 %Max. head: 28.9 mMax. flow: 4 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4201341 |
| Model | Helix V 204-1/16/E/S/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | G1 |
| Rated power P2 | 0.37 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 16 bar |
| Discharge port | G 1 |
| Min. fluid temperature Tmin | -30 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.37 kW |
| Rated current IN | 0.95 A |
| Rated speed n | 2850 1/min |
| Power factor cos φ100 | 0.76 |
| Motor efficiency 50% ηM 50% | 64.8 % |
| Motor efficiency 75% ηM 75% | 71.1 % |
| Motor efficiency 100% ηM 100% | 72.8 % |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | G 1 |
| Pipe connection, discharge side DNd | G 1 |
| Dimensions (W × L × H) | 40 × 80 × 37 cm |
| Weight | 21.3 kg |
Performance Table
| Flow (m³/h) | 0.3 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 28.9 | 28.8 | 27.8 | 26.1 | 23.8 | 20.6 | 16.5 | 11.4 | 5.47 |
| Shaft power P2 (kW) | 0.18 | 0.2 | 0.23 | 0.26 | 0.28 | 0.3 | 0.31 | 0.32 | 0.31 |
| Hydraulic efficiency (%) | 16 | 23 | 37 | 45 | 49 | 50 | 46 | 37 | 20 |
| NPSH required (m) | 0.58 | 0.58 | 0.52 | 0.58 | 0.65 | 0.86 | 1.18 | 1.76 | 2.98 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 204-1/16/E/S/400-50:
Wilo Helix V 204 Performance Curve (50 Hz)
30 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 223 mm |
| Width W | 212 mm |
| Height H | 585 mm |
| Net weight (approx.) | 17.8 kg |
| Gross weight (approx.) | 21.3 kg |
| Length with packaging | 800 mm |
| Width with packaging | 400 mm |
| Height with packaging | 370 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Helix V 204-1/16/E/S/400-50?
The Wilo Helix V 204-1/16/E/S/400-50 has a maximum head of 28.9 m.
How much water can the Wilo Helix V 204-1/16/E/S/400-50 pump?
The Wilo Helix V 204-1/16/E/S/400-50 pumps up to 4 m³/h.
What power supply does the Wilo Helix V 204-1/16/E/S/400-50 need?
Supply: ±10 %. Motor power: 0.37 kW.
What are the pipe connections of the Wilo Helix V 204-1/16/E/S/400-50?
10 bar.
