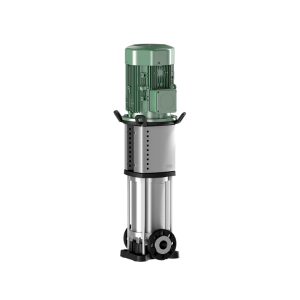

Wilo Helix V 613-2/25/V/KS/400-50 / 3kW Vertical Multistage Pump
18572
The Wilo Helix V 613-2/25/V/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 3 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 3 kWSupply: ±10 %Max. head: 113 mMax. flow: 9.99 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4156074 |
| Model | Helix V 613-2/25/V/KS/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | G 1¼ |
| Rated power P2 | 3 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 25 bar |
| Discharge port | DN 32 |
| Min. fluid temperature Tmin | -15 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Mains connection | 3~400 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 3 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 5.5 A |
| Rated speed n | 2900 1/min |
| Power factor cos φ100 | 0.90 |
| Motor efficiency 50% ηM 50% | 85.4 % |
| Motor efficiency 75% ηM 75% | 87.1 % |
| Motor efficiency 100% ηM 100% | 87.1 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1VGG |
| Gasket material | FKM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | DN 32 |
| Dimensions (W × L × H) | 40 × 160 × 50 cm |
| Weight | 74 kg |
Performance Table
| Flow (m³/h) | 0.99 | 2 | 4 | 6 | 8 | 9.99 |
|---|---|---|---|---|---|---|
| Head (m) | 113 | 110.2 | 101.5 | 88.2 | 67.1 | 33 |
| Shaft power P2 (kW) | 1.47 | 1.65 | 2.03 | 2.36 | 2.6 | 2.64 |
| Hydraulic efficiency (%) | 24 | 40 | 59 | 65 | 60 | 36 |
| NPSH required (m) | 0.62 | 0.74 | 0.74 | 1.18 | 2.52 | 4.99 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 613-2/25/V/KS/400-50:
Wilo Helix V 613 Performance Curve (50 Hz)
29 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 266 mm |
| Width W | 217 mm |
| Height H | 1230 mm |
| Net weight (approx.) | 58 kg |
| Gross weight (approx.) | 74 kg |
| Length with packaging | 1600 mm |
| Width with packaging | 400 mm |
| Height with packaging | 500 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Helix V 613-2/25/V/KS/400-50?
The Wilo Helix V 613-2/25/V/KS/400-50 has a maximum head of 113 m.
How much water can the Wilo Helix V 613-2/25/V/KS/400-50 pump?
The Wilo Helix V 613-2/25/V/KS/400-50 pumps up to 9.99 m³/h.
What power supply does the Wilo Helix V 613-2/25/V/KS/400-50 need?
Supply: ±10 %. Motor power: 3 kW.
What are the pipe connections of the Wilo Helix V 613-2/25/V/KS/400-50?
10 bar.
