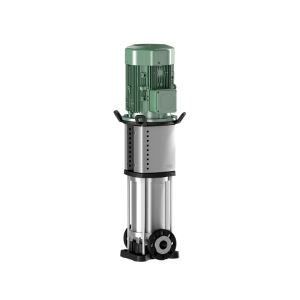

Wilo Helix V 1021-1/25/E/KS/400-50 / 7.5kW Vertical Multistage Pump
18584
The Wilo Helix V 1021-1/25/E/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 7.5 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 7,5 kWSupply: ±10 %Max. head: 222 mMax. flow: 1 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4150569 |
| Model | Helix V 1021-1/25/E/KS/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | G 1½ |
| Rated power P2 | 7,5 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 25 bar |
| Discharge port | DN 40 |
| Min. fluid temperature Tmin | -30 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Mains connection | 3~400 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 7.5 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 13.7 A |
| Rated speed n | 2900 1/min |
| Power factor cos φ100 | 0.88 |
| Motor efficiency 50% ηM 50% | 89.8 % |
| Motor efficiency 75% ηM 75% | 90.5 % |
| Motor efficiency 100% ηM 100% | 90.1 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | DN 40 |
| Dimensions (W × L × H) | 60 × 200 × 45 cm |
| Weight | 128 kg |
Performance Table
| Flow (m³/h) | 0.02 | 0.2 | 0.4 | 0.6 | 0.8 | 1 |
|---|---|---|---|---|---|---|
| Head (m) | 222 | 222 | 222 | 222 | 221.7 | 221.1 |
| Shaft power P2 (kW) | – | – | – | – | – | 32.43 |
| Hydraulic efficiency (%) | – | – | – | – | – | – |
| NPSH required (m) | – | – | – | – | – | – |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 1021-1/25/E/KS/400-50:
Wilo Helix V 1021 Performance Curve (50 Hz)
28 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 321 mm |
| Width W | 279 mm |
| Height H | 1657 mm |
| Net weight (approx.) | 77 kg |
| Gross weight (approx.) | 128 kg |
| Length with packaging | 2000 mm |
| Width with packaging | 600 mm |
| Height with packaging | 450 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Helix V 1021-1/25/E/KS/400-50?
The Wilo Helix V 1021-1/25/E/KS/400-50 has a maximum head of 222 m.
How much water can the Wilo Helix V 1021-1/25/E/KS/400-50 pump?
The Wilo Helix V 1021-1/25/E/KS/400-50 pumps up to 1 m³/h.
What power supply does the Wilo Helix V 1021-1/25/E/KS/400-50 need?
Supply: ±10 %. Motor power: 7,5 kW.
What are the pipe connections of the Wilo Helix V 1021-1/25/E/KS/400-50?
10 bar.
