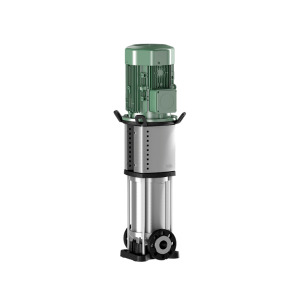

Wilo Helix V 1004-2/25/V/KS/400-50 / 1.5kW Vertical Multistage Pump
18585
The Wilo Helix V 1004-2/25/V/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 1.5 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 1,5 kWSupply: ±10 %Max. head: 42.6 mMax. flow: 1.5 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4150575 |
| Model | Helix V 1004-2/25/V/KS/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | G 1½ |
| Rated power P2 | 1,5 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 25 bar |
| Discharge port | DN 40 |
| Min. fluid temperature Tmin | -15 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Mains connection | 3~400 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 1.5 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 3 A |
| Rated speed n | 2900 1/min |
| Power factor cos φ100 | 0.85 |
| Motor efficiency 50% ηM 50% | 80.9 % |
| Motor efficiency 75% ηM 75% | 83.8 % |
| Motor efficiency 100% ηM 100% | 84.2 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1VGG |
| Gasket material | FKM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | DN 40 |
| Dimensions (W × L × H) | 40 × 120 × 40 cm |
| Weight | 46 kg |
Performance Table
| Flow (m³/h) | 1.01 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 |
|---|---|---|---|---|---|---|
| Head (m) | 42.6 | 42.6 | 42.6 | 42.6 | 42.6 | 42.6 |
| Shaft power P2 (kW) | – | – | – | – | – | – |
| Hydraulic efficiency (%) | 113 | 113 | 114 | 114 | 114 | 115 |
| NPSH required (m) | – | – | – | – | – | – |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 1004-2/25/V/KS/400-50:
Wilo Helix V 1004 Performance Curve (50 Hz)
28 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 277 mm |
| Width W | 252 mm |
| Height H | 796 mm |
| Net weight (approx.) | 40 kg |
| Gross weight (approx.) | 46 kg |
| Length with packaging | 1200 mm |
| Width with packaging | 400 mm |
| Height with packaging | 400 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Helix V 1004-2/25/V/KS/400-50?
The Wilo Helix V 1004-2/25/V/KS/400-50 has a maximum head of 42.6 m.
How much water can the Wilo Helix V 1004-2/25/V/KS/400-50 pump?
The Wilo Helix V 1004-2/25/V/KS/400-50 pumps up to 1.5 m³/h.
What power supply does the Wilo Helix V 1004-2/25/V/KS/400-50 need?
Supply: ±10 %. Motor power: 1,5 kW.
What are the pipe connections of the Wilo Helix V 1004-2/25/V/KS/400-50?
10 bar.
