Wilo Helix V 1611-1/25/E/KS/400-50 / 7.5kW Vertical Multistage Pump

R 49,945.93 incl. VATAdd to Basket

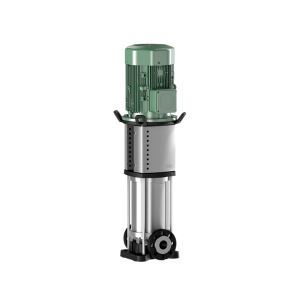

Wilo Helix V 1611-1/25/E/KS/400-50 / 7.5kW Vertical Multistage Pump image 1

The Wilo Helix V 1611-1/25/E/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 7.5 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.

At a glance

Power: 7,5 kWSupply: ±10 %Max. head: 143.6 mMax. flow: 25 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process water

Specifications

BrandWilo
Item code4141161
ModelHelix V 1611-1/25/E/KS/400-50
SeriesWilo Helix V
Typevertical multistage high-pressure centrifugal pump
(AISI 304L), portG 2
Rated power P27,5 kW
Minimum efficiency index (MEI)0.5
Maximum inlet pressure p inl10 bar
Maximum operating pressure PN25 bar
Discharge portDN 50
Min. fluid temperature Tmin-30 °C
Max. fluid temperature Tmax120 °C
Min. ambient temperature Tmin-15 °C
Max. ambient temperature Tmax50 °C
Mains connection3~400 V, 50 Hz
Voltage tolerance±10 %
Rated power P27.5 kW
Motor efficiency classIE3
Rated current IN13.7 A
Rated speed n2900 1/min
Power factor cos φ1000.88
Motor efficiency 50% ηM 50%89.8 %
Motor efficiency 75% ηM 75%90.5 %
Motor efficiency 100% ηM 100%90.1 %
Insulation classF
Protection classIP55
Pump housingStainless steel
ImpellerStainless steel
ShaftStainless steel
Shaft sealBQ1EGG
Gasket materialEPDM
Stage chamber materialStainless steel
Pipe connection, suction side DNsDN 50
Dimensions (W × L × H)40 × 160 × 50 cm
Weight107 kg

Performance Table

Flow (m³/h)2.99510152025
Head (m)143.6142.4135.7121.797.360.4
Shaft power P2 (kW)4.174.86.47.527.847.56
Hydraulic efficiency (%)314461707157
NPSH required (m)0.890.891.221.722.96.61

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 1611-1/25/E/KS/400-50:



Wilo Helix V 1611 Performance Curve (50 Hz)

29 kB  |  Download

Applications

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Features

  • Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
  • Corrosion-resistant impellers, guide vanes and stage housings
  • Flow and NPSH-optimised pump housing
  • Maintenance-friendly design with particularly robust coupling guard
  • Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Dimensions & Weight

DimensionValue
Length L1487 mm
Width W252 mm
Height H1442 mm
Net weight (approx.)73 kg
Gross weight (approx.)107 kg
Length with packaging1600 mm
Width with packaging400 mm
Height with packaging500 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Helix V 1611-1/25/E/KS/400-50?

The Wilo Helix V 1611-1/25/E/KS/400-50 has a maximum head of 143.6 m.

How much water can the Wilo Helix V 1611-1/25/E/KS/400-50 pump?

The Wilo Helix V 1611-1/25/E/KS/400-50 pumps up to 25 m³/h.

What power supply does the Wilo Helix V 1611-1/25/E/KS/400-50 need?

Supply: ±10 %. Motor power: 7,5 kW.

What are the pipe connections of the Wilo Helix V 1611-1/25/E/KS/400-50?

10 bar.
