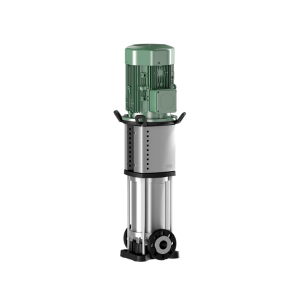

Wilo Helix V 3606-1/16/E/KS/400-50 / 18.5kW Vertical Multistage Pump
18607
The Wilo Helix V 3606-1/16/E/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 18.5 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 18,5 kWSupply: ±10 %Max. head: 156 mMax. flow: 54.95 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4198483 |
| Model | Helix V 3606-1/16/E/KS/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | DN65 |
| Rated power P2 | 18,5 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 16 bar |
| Discharge port | DN 65 |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Mains connection | 3~400 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 18.5 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 32.8 A |
| Rated speed n | 2900 1/min |
| Power factor cos φ100 | 0.89 |
| Motor efficiency 50% ηM 50% | 91.6 % |
| Motor efficiency 75% ηM 75% | 92.5 % |
| Motor efficiency 100% ηM 100% | 92.4 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | DN 65 |
| Dimensions (W × L × H) | 63 × 163 × 77 cm |
| Weight | 232 kg |
Performance Table
| Flow (m³/h) | 6.05 | 10 | 20 | 30 | 40 | 50 | 54.95 |
|---|---|---|---|---|---|---|---|
| Head (m) | 156 | 153.3 | 144.3 | 131.2 | 108.8 | 74.8 | 53.9 |
| Shaft power P2 (kW) | 10.05 | 10.82 | 12.95 | 14.77 | 16.17 | 16.58 | 16.37 |
| Hydraulic efficiency (%) | 29 | 42 | 64 | 76 | 76 | 64 | 52 |
| NPSH required (m) | 1.17 | 1.26 | 1.54 | 2.17 | 2.98 | 3.63 | 4.55 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 3606-1/16/E/KS/400-50:
Wilo Helix V 3606 Performance Curve (50 Hz)
30 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 320 mm |
| Width W | 296 mm |
| Height H | 1426 mm |
| Net weight (approx.) | 184 kg |
| Gross weight (approx.) | 232 kg |
| Length with packaging | 1630 mm |
| Width with packaging | 630 mm |
| Height with packaging | 770 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Helix V 3606-1/16/E/KS/400-50?
The Wilo Helix V 3606-1/16/E/KS/400-50 has a maximum head of 156 m.
How much water can the Wilo Helix V 3606-1/16/E/KS/400-50 pump?
The Wilo Helix V 3606-1/16/E/KS/400-50 pumps up to 54.95 m³/h.
What power supply does the Wilo Helix V 3606-1/16/E/KS/400-50 need?
Supply: ±10 %. Motor power: 18,5 kW.
What are the pipe connections of the Wilo Helix V 3606-1/16/E/KS/400-50?
10 bar.
