Wilo Helix V 3608-1/25/E/KS/400-50 / 22kW Vertical Multistage Pump

R 101,839.68 incl. VATAdd to Basket

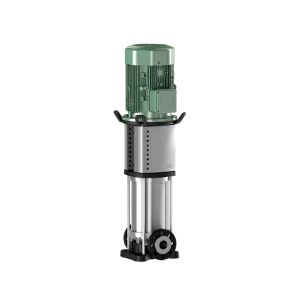

Wilo Helix V 3608-1/25/E/KS/400-50 / 22kW Vertical Multistage Pump image 1

The Wilo Helix V 3608-1/25/E/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 22 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.

At a glance

Power: 22 kWSupply: ±10 %Max. head: 208.4 mMax. flow: 54.92 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process water

Specifications

BrandWilo
Item code4198488
ModelHelix V 3608-1/25/E/KS/400-50
SeriesWilo Helix V
Typevertical multistage high-pressure centrifugal pump
Pressure portDN65
Rated power P222 kW
Minimum efficiency index (MEI)0.7
Maximum inlet pressure p inl10 bar
Maximum operating pressure PN25 bar
Discharge portDN 65
Min. fluid temperature Tmin-20 °C
Max. fluid temperature Tmax120 °C
Min. ambient temperature Tmin-15 °C
Max. ambient temperature Tmax50 °C
Mains connection3~400 V, 50 Hz
Voltage tolerance±10 %
Rated power P222 kW
Motor efficiency classIE3
Rated current IN39.1 A
Rated speed n2940 1/min
Power factor cos φ1000.87
Motor efficiency 50% ηM 50%92.7 %
Motor efficiency 75% ηM 75%92.7 %
Motor efficiency 100% ηM 100%92.7 %
Insulation classF
Protection classIP55
Pump housingStainless steel
ImpellerStainless steel
ShaftStainless steel
Shaft sealBQ1EGG
Gasket materialEPDM
Stage chamber materialStainless steel
Pipe connection, suction side DNsDN 65
Dimensions (W × L × H)63 × 201 × 74 cm
Weight257 kg

Performance Table

Flow (m³/h)5.96102030405054.92
Head (m)208.4204.7192.7175.7146.3100.973.8
Shaft power P2 (kW)13.3414.5817.4319.8221.6722.2521.96
Hydraulic efficiency (%)29426476766452
NPSH required (m)1.21.311.662.243.053.674.65

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 3608-1/25/E/KS/400-50:



Wilo Helix V 3608 Performance Curve (50 Hz)

30 kB  |  Download

Applications

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Features

  • Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
  • Corrosion-resistant impellers, guide vanes and stage housings
  • Flow and NPSH-optimised pump housing
  • Maintenance-friendly design with particularly robust coupling guard
  • Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Dimensions & Weight

DimensionValue
Length L320 mm
Width W296 mm
Height H1559 mm
Net weight (approx.)207 kg
Gross weight (approx.)257 kg
Length with packaging2010 mm
Width with packaging630 mm
Height with packaging740 mm
