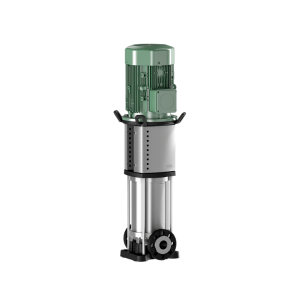

Wilo Helix V 5201-1/16/E/KS/400-50 / 4kW Vertical Multistage Pump
18611
The Wilo Helix V 5201-1/16/E/KS/400-50 is a vertical multistage high-pressure centrifugal pump from the Wilo Helix V range with a 4 kW motor rating. Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections.
At a glance
Power: 4 kWSupply: ±10 %Max. head: 27 mMax. flow: 80 m³/hConnections: 10 barBest for: Water supply and pressure boosting, Industrial circulation systems, Process waterSpecifications
| Brand | Wilo |
| Item code | 4198493 |
| Model | Helix V 5201-1/16/E/KS/400-50 |
| Series | Wilo Helix V |
| Type | vertical multistage high-pressure centrifugal pump |
| Pressure port | DN80 |
| Rated power P2 | 4 kW |
| Minimum efficiency index (MEI) | 0.7 |
| Maximum inlet pressure p inl | 10 bar |
| Maximum operating pressure PN | 16 bar |
| Discharge port | DN 80 |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Mains connection | 3~400 V, 50 Hz |
| Voltage tolerance | ±10 % |
| Rated power P2 | 4 kW |
| Motor efficiency class | IE3 |
| Rated current IN | 7.4 A |
| Rated speed n | 2900 1/min |
| Power factor cos φ100 | 0.87 |
| Motor efficiency 50% ηM 50% | 86.5 % |
| Motor efficiency 75% ηM 75% | 88 % |
| Motor efficiency 100% ηM 100% | 88.1 % |
| Insulation class | F |
| Protection class | IP55 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Pipe connection, suction side DNs | DN 80 |
| Dimensions (W × L × H) | 43.5 × 101.6 × 46 cm |
| Weight | 90 kg |
Performance Table
| Flow (m³/h) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 27 | 25.5 | 23.4 | 20.9 | 18 | 14.6 | 10.3 | 5.22 |
| Shaft power P2 (kW) | 2.62 | 2.79 | 3.02 | 3.28 | 3.48 | 3.62 | 3.71 | 3.71 |
| Hydraulic efficiency (%) | 31 | 54 | 67 | 74 | 75 | 69 | 56 | 31 |
| NPSH required (m) | 1.3 | 1.48 | 1.77 | 2.25 | 2.89 | 3.62 | 4.48 | 5.91 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Helix V 5201-1/16/E/KS/400-50:
Wilo Helix V 5201 Performance Curve (50 Hz)
31 kB | Download
Applications
- Water supply and pressure boosting
- Industrial circulation systems
- Process water
- Closed cooling circuits
- Fire extinguishing systems
- Washing systems
- Irrigation
Features
- Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
- Corrosion-resistant impellers, guide vanes and stage housings
- Flow and NPSH-optimised pump housing
- Maintenance-friendly design with particularly robust coupling guard
- Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 365 mm |
| Width W | 296 mm |
| Height H | 806 mm |
| Net weight (approx.) | 76 kg |
| Gross weight (approx.) | 90 kg |
| Length with packaging | 1016 mm |
| Width with packaging | 435 mm |
| Height with packaging | 460 mm |
