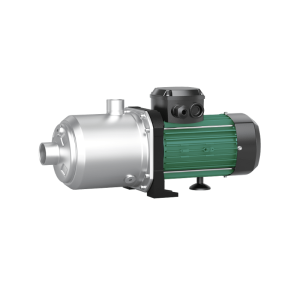

Wilo Medana CH1-L 202-1/E/E/10T / 0.37kW Horizontal Multistage Pump
18634
The Wilo Medana CH1-L 202-1/E/E/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-L range with a 0.37 kW motor rating. Non-self-priming horizontal multistage pump.
At a glance
Power: 0.37 kWSupply: ±10 %Max. head: 18.3 mMax. flow: 4.24 m³/hConnections: Rp 1Best for: Water distribution and boosting, Irrigation, Industrial processSpecifications
| Brand | Wilo |
| Item code | 4231463 |
| Model | Medana CH1-L 202-1/E/E/10T |
| Series | Wilo Medana CH1-L |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 | 0.37 kW |
| Mains connection | 3~400 V, 50 Hz |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Maximum operating pressure PN | 10 bar |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.37 kW |
| Rated current IN | 1.1 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Connection type | Screwed connection inner thread |
| Dimensions (W × L × H) | 26 × 60 × 28 cm |
| Weight | 10.5 kg |
Performance Table
| Flow (m³/h) | 0.2 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.24 |
|---|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 18.3 | 18.1 | 17.6 | 16.8 | 15.6 | 14 | 11.9 | 9.29 | 6.27 | 4.74 |
| Shaft power P2 (kW) | 0.13 | 0.14 | 0.17 | 0.19 | 0.21 | 0.23 | 0.24 | 0.25 | 0.25 | 0.25 |
| Hydraulic efficiency (%) | 9 | 19 | 31 | 38 | 42 | 44 | 42 | 37 | 28 | 23 |
| NPSH required (m) | 1.2 | 1.2 | 1.2 | 1.39 | 1.83 | 3.07 | 4.73 | 7.13 | 10 | 11.5 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-L 202-1/E/E/10T:
Wilo Medana CH1-L 202 Performance Curve (50 Hz)
30 kB | Download
Applications
- Water distribution and boosting
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Quick and easy commissioning/maintenance thanks to large openings for filling and draining pumps
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C and expanded field of application especially for system integration
- Suitable for drinking water applications
- Compliant to UL certificate
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 340.3 mm |
| Width W | 166 mm |
| Height H | 203.5 mm |
| Net weight (approx.) | 9 kg |
| Gross weight (approx.) | 10.5 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Medana CH1-L 202-1/E/E/10T?
The Wilo Medana CH1-L 202-1/E/E/10T has a maximum head of 18.3 m.
How much water can the Wilo Medana CH1-L 202-1/E/E/10T pump?
The Wilo Medana CH1-L 202-1/E/E/10T pumps up to 4.24 m³/h.
What power supply does the Wilo Medana CH1-L 202-1/E/E/10T need?
Supply: ±10 %. Motor power: 0.37 kW.
What are the pipe connections of the Wilo Medana CH1-L 202-1/E/E/10T?
Rp 1.
