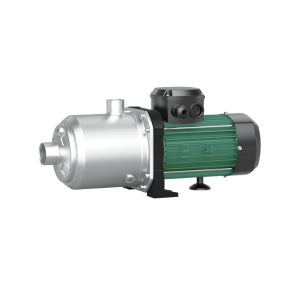

Wilo Medana CH1-L 402-2/V/E/10T / 0.37kW Horizontal Multistage Pump
18646
The Wilo Medana CH1-L 402-2/V/E/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-L range with a 0.37 kW motor rating. Non-self-priming horizontal multistage pump.
Applications
- Water distribution and boosting
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Quick and easy commissioning/maintenance thanks to large openings for filling and draining pumps
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C and expanded field of application especially for system integration
- Suitable for drinking water applications
- Compliant to UL certificate
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 4235337 |
| Model | Medana CH1-L 402-2/V/E/10T |
| Series | Wilo Medana CH1-L |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 (kW) | 0.37 |
| Mains connection | 3~400 V, 50 Hz |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Maximum operating pressure PN | 10 bar |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.37 kW |
| Rated current IN | 1.1 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1VGG |
| Gasket material | FKM |
| Stage chamber material | Stainless steel |
| Connection type | Screwed connection inner thread |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 340.3 mm |
| Width W | 166 mm |
| Height H | 203.5 mm |
| Net weight (approx.) | 9 kg |
| Gross weight (approx.) | 10.5 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
