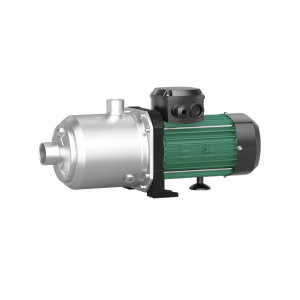

Wilo Medana CH1-L 1003-1/E/A/10T / 1.5kW Horizontal Multistage Pump
18693
The Wilo Medana CH1-L 1003-1/E/A/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-L range with a 1.5 kW motor rating. Non-self-priming horizontal multistage pump.
At a glance
Power: 1.5 kWSupply: ±10 %Max. head: 38.9 mMax. flow: 14.69 m³/hConnections: Rp 1½Best for: Water distribution and boosting, Irrigation, Industrial processSpecifications
| Brand | Wilo |
| Item code | 4231496 |
| Model | Medana CH1-L 1003-1/E/A/10T |
| Series | Wilo Medana CH1-L |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 | 1.5 kW |
| Mains connection | 1~230 V, 50 Hz |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 120 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Maximum operating pressure PN | 10 bar |
| Pipe connection, suction side DNs | Rp 1½ |
| Pipe connection, discharge side DNd | Rp 1¼ |
| Voltage tolerance | ±10 % |
| Rated power P2 | 1.5 kW |
| Rated current IN | 8.3 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Connection type | Screwed connection inner thread |
| Dimensions (W × L × H) | 26 × 60 × 28 cm |
| Weight | 18.4 kg |
Performance Table
| Flow (m³/h) | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 14.69 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 38.9 | 38.4 | 37.4 | 36.3 | 34.5 | 31.1 | 25.4 | 17.3 | 14.2 |
| Shaft power P2 (kW) | 0.65 | 0.76 | 0.93 | 1.1 | 1.26 | 1.37 | 1.44 | 1.45 | 1.45 |
| Hydraulic efficiency (%) | 19 | 31 | 47 | 57 | 63 | 65 | 61 | 47 | 41 |
| NPSH required (m) | 1.93 | 1.33 | 0.85 | 0.78 | 1.19 | 1.96 | 3.31 | 5.49 | 6.48 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-L 1003-1/E/A/10T:
Wilo Medana CH1-L 1003 Performance Curve (50 Hz)
30 kB | Download
Applications
- Water distribution and boosting
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Quick and easy commissioning/maintenance thanks to large openings for filling and draining pumps
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C and expanded field of application especially for system integration
- Suitable for drinking water applications
- Compliant to UL certificate
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 422 mm |
| Width W | 185 mm |
| Height H | 213 mm |
| Net weight (approx.) | 16.9 kg |
| Gross weight (approx.) | 18.4 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Medana CH1-L 1003-1/E/A/10T?
The Wilo Medana CH1-L 1003-1/E/A/10T has a maximum head of 38.9 m.
How much water can the Wilo Medana CH1-L 1003-1/E/A/10T pump?
The Wilo Medana CH1-L 1003-1/E/A/10T pumps up to 14.69 m³/h.
What power supply does the Wilo Medana CH1-L 1003-1/E/A/10T need?
Supply: ±10 %. Motor power: 1.5 kW.
What are the pipe connections of the Wilo Medana CH1-L 1003-1/E/A/10T?
Rp 1½.
