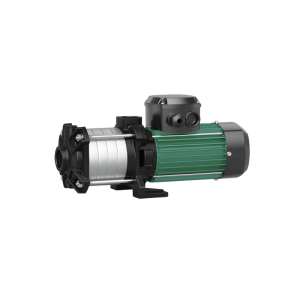

Wilo Medana CH1-LC 203-5/E/E/10T / 0.37kW Horizontal Multistage Pump
18708
The Wilo Medana CH1-LC 203-5/E/E/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-LC range with a 0.37 kW motor rating. Non-self-priming horizontal multistage pump.
At a glance
Power: 0.37 kWSupply: ±10 %Max. head: 26.1 mMax. flow: 3.88 m³/hConnections: 6 barBest for: Irrigation, Industrial processSpecifications
| Brand | Wilo |
| Item code | 4233359 |
| Model | Medana CH1-LC 203-5/E/E/10T |
| Series | Wilo Medana CH1-LC |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 | 0.37 kW |
| Mains connection | 3~400 V, 50 Hz |
| Maximum inlet pressure p inl | 6 bar |
| Maximum operating pressure PN | 10 bar |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Connection type | Screwed connection inner thread |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.37 kW |
| Rated current IN | 1.1 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | 5.1301/EN-GJL-250 KTL-coated |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Dimensions (W × L × H) | 26 × 60 × 28 cm |
| Weight | 13.5 kg |
Performance Table
| Flow (m³/h) | 0.2 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 3.88 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 26.1 | 25.7 | 24.7 | 22.9 | 20.4 | 17.1 | 13 | 8.23 | 4.11 |
| Shaft power P2 (kW) | 0.18 | 0.2 | 0.24 | 0.28 | 0.3 | 0.33 | 0.34 | 0.35 | 0.34 |
| Hydraulic efficiency (%) | 9 | 19 | 30 | 36 | 39 | 38 | 33 | 24 | 13 |
| NPSH required (m) | 0.82 | 0.64 | 0.64 | 0.94 | 1.85 | 3.35 | 5.42 | 8.13 | 10.5 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-LC 203-5/E/E/10T:
Wilo Medana CH1-LC.203 Performance Curve (50 Hz)
30 kB | Download
Applications
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C – which means an expanded field of application especially for system integration
- Compliant to UL certificate
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 350.5 mm |
| Width W | 155 mm |
| Height H | 187 mm |
| Net weight (approx.) | 11.5 kg |
| Gross weight (approx.) | 13.5 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Medana CH1-LC 203-5/E/E/10T?
The Wilo Medana CH1-LC 203-5/E/E/10T has a maximum head of 26.1 m.
How much water can the Wilo Medana CH1-LC 203-5/E/E/10T pump?
The Wilo Medana CH1-LC 203-5/E/E/10T pumps up to 3.88 m³/h.
What power supply does the Wilo Medana CH1-LC 203-5/E/E/10T need?
Supply: ±10 %. Motor power: 0.37 kW.
What are the pipe connections of the Wilo Medana CH1-LC 203-5/E/E/10T?
6 bar.
