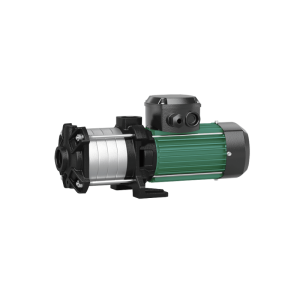

Wilo Medana CH1-LC 402-5/E/A/10T / 0.37kW Horizontal Multistage Pump
18717
The Wilo Medana CH1-LC 402-5/E/A/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-LC range with a 0.37 kW motor rating. Non-self-priming horizontal multistage pump.
Applications
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C – which means an expanded field of application especially for system integration
- Compliant to UL certificate
Specifications
| Parameter | Value |
|---|---|
| Brand | Wilo |
| Item code | 4233368 |
| Model | Medana CH1-LC 402-5/E/A/10T |
| Series | Wilo Medana CH1-LC |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 (kW) | 0.37 |
| Mains connection | 1~230 V, 50 Hz |
| Maximum inlet pressure p inl | 6 bar |
| Maximum operating pressure PN | 10 bar |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Connection type | Screwed connection inner thread |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.37 kW |
| Rated current IN | 2.5 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | 5.1301/EN-GJL-250 KTL-coated |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 345 mm |
| Width W | 179.5 mm |
| Height H | 185 mm |
| Net weight (approx.) | 11.1 kg |
| Gross weight (approx.) | 13.1 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
Data from the Wilo online catalogue and the Wilo South Africa price list. Specifications may change without notice.
