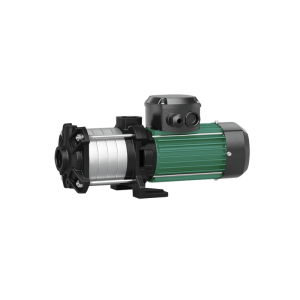

Wilo Medana CH1-LC 604-5/E/E/10T / 1.1kW Horizontal Multistage Pump
18733
The Wilo Medana CH1-LC 604-5/E/E/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-LC range with a 1.1 kW motor rating. Non-self-priming horizontal multistage pump.
At a glance
Power: 1.1 kWSupply: ±10 %Max. head: 45.4 mMax. flow: 9.85 m³/hConnections: 6 barBest for: Irrigation, Industrial processSpecifications
| Brand | Wilo |
| Item code | 4233380 |
| Model | Medana CH1-LC 604-5/E/E/10T |
| Series | Wilo Medana CH1-LC |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 | 1.1 kW |
| Mains connection | 3~400 V, 50 Hz |
| Maximum inlet pressure p inl | 6 bar |
| Maximum operating pressure PN | 10 bar |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Connection type | Screwed connection inner thread |
| Pipe connection, suction side DNs | Rp 1¼ |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 1.1 kW |
| Rated current IN | 2.7 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE3 |
| Pump housing | 5.1301/EN-GJL-250 KTL-coated |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Dimensions (W × L × H) | 26 × 60 × 28 cm |
| Weight | 18.6 kg |
Performance Table
| Flow (m³/h) | 0.6 | 2 | 4 | 6 | 8 | 9.85 |
|---|---|---|---|---|---|---|
| Head (m) | 45.4 | 44.5 | 41 | 35.7 | 27.2 | 14.4 |
| Shaft power P2 (kW) | 0.54 | 0.7 | 0.91 | 1.05 | 1.13 | 1.13 |
| Hydraulic efficiency (%) | 16 | 37 | 52 | 58 | 54 | 36 |
| NPSH required (m) | 2.27 | 2.92 | 1.57 | 1.54 | 4.53 | 9.23 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-LC 604-5/E/E/10T:
Wilo Medana CH1-LC.604 Performance Curve (50 Hz)
29 kB | Download
Applications
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C – which means an expanded field of application especially for system integration
- Compliant to UL certificate
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 451.8 mm |
| Width W | 155 mm |
| Height H | 196 mm |
| Net weight (approx.) | 16.6 kg |
| Gross weight (approx.) | 18.6 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
