Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set

R 61,178.56 incl. VATAdd to Basket

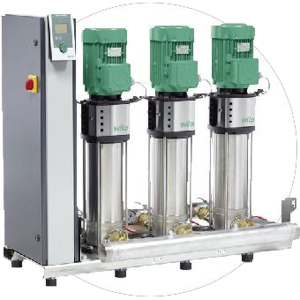

Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set image 1

The Wilo Economy CO-1 Helix V 1604-CE+ is a pressure boosting system from the Wilo Economy CO-Helix V CE+ range. Highly efficient water-supply unit ready for connection (non self-priming). With 1 to 3 vertically arranged glanded stainless steel high-pressure multistage centrifugal pumps from the Helix V series connected in parallel, including Wilo DOL-CE+ Control Panel. Supplied as a factory-assembled set with 1 pump(s).

At a glance

Max. head: 52.2 mMax. flow: 25 m³/h

Specifications

BrandWilo
Item code2790182A
ModelEconomy CO-1 Helix V 1604-CE+
SeriesWilo Economy CO-Helix V CE+
Typepressure boosting system
Number of pumps1

Performance Table

Flow (m³/h)3.02510152025
Head (m)52.251.749.243.93521.6
Shaft power P2 (kW)1.541.782.372.812.962.89
Hydraulic efficiency (%)314360686853
NPSH required (m)0.890.891.221.712.966.6

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set:



Wilo Helix V 1604 Performance Curve (50 Hz)

29 kB  |  Download

Applications

  • Fully automatic water supply and pressure boosting in residential, commercial and public buildings, hotels, hospitals, department stores and for industrial systems
  • Pumping of drinking water, process water, cooling water, fire water (apart from Fire-fighting systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents

Features

  • Heavy-duty system in accordance with DIN 1988 (EN 806)
  • 1 to 3 vertical Helix V series stainless steel highpressure multistage centrifugal pumps switched y in parallel p
  • High-efficiency pump hydraulics re
  • Pressure-loss optimised entire system a W
  • Control device SC, communication-capable for the monitoring of the system, LC display, simple navigation and adjustment via rotary knob without or with frequency converter for stepless control of the base-load pump

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set?

The Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set has a maximum head of 52.2 m.

How much water can the Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set pump?

The Wilo Economy CO-1 Helix V 1604-CE+ Pressure Booster Set pumps up to 25 m³/h.
