Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set – 230V

R 74,405.71 incl. VATAdd to Basket

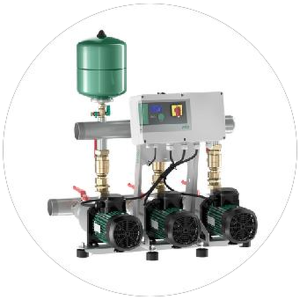

Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set – 230V image 1

The Wilo Economy CO-2 Medana CH1-L 206-CE+ is a pressure boosting system from the Wilo Economy CO-Medana CE+ range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 2 pump(s).

At a glance

Max. head: 54.3 mMax. flow: 8.38 m³/hSupply: 230 V single-phase

Specifications

BrandWilo
Item code2802103A
ModelEconomy CO-2 Medana CH1-L 206-CE+
Supply230 V single-phase
SeriesWilo Economy CO-Medana CE+
Typepressure boosting system
Number of pumps2

Performance Table

Flow (m³/h)0.4123456788.38
Head (m)54.353.651.949.345.840.934.626.717.613.9
Shaft power P2 (kW)0.680.780.931.081.191.291.361.41.411.41
Hydraulic efficiency (%)10213340444543382824
NPSH required (m)1.231.231.231.321.793.054.777.249.9311

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set:



Wilo Medana CH1-L 206 Performance Curve (50 Hz)

31 kB  |  Download

Applications

  • Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
  • Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents

Features

  • High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
  • Easy installation and maintenance thanks to spey cial, flexibly adjustable connections to manifolds p
  • Easy commissioning and operation with the Easy re Controller a
  • Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set?

The Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set has a maximum head of 54.3 m.

How much water can the Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set pump?

The Wilo Economy CO-2 Medana CH1-L 206-CE+ Pressure Booster Set pumps up to 8.38 m³/h.
