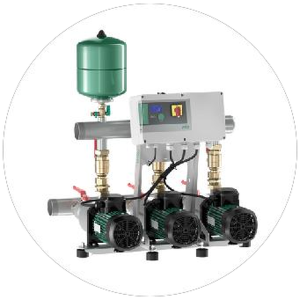

Wilo Economy CO-3 Medana CH1-L 202-CE+ Pressure Booster Set – 230V
19079
The Wilo Economy CO-3 Medana CH1-L 202-CE+ is a pressure boosting system from the Wilo Economy CO-Medana CE+ range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 3 pump(s).
At a glance
Max. head: 18.4 mMax. flow: 12.93 m³/hSupply: 230 V single-phaseSpecifications
| Brand | Wilo |
| Item code | 2803118A |
| Model | Economy CO-3 Medana CH1-L 202-CE+ |
| Supply | 230 V single-phase |
| Series | Wilo Economy CO-Medana CE+ |
| Type | pressure boosting system |
| Number of pumps | 3 |
Performance Table
| Flow (m³/h) | 0.58 | 2 | 4 | 6 | 8 | 10 | 12 | 12.93 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 18.4 | 18.1 | 17.3 | 15.9 | 13.7 | 10.6 | 6.69 | 4.72 |
| Shaft power P2 (kW) | 0.38 | 0.46 | 0.56 | 0.65 | 0.72 | 0.76 | 0.77 | 0.79 |
| Hydraulic efficiency (%) | 9 | 24 | 36 | 42 | 44 | 40 | 29 | 22 |
| NPSH required (m) | 1.21 | 1.21 | 1.21 | 1.81 | 3.47 | 6.3 | 10 | 11.9 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Economy CO-3 Medana CH1-L 202-CE+ Pressure Booster Set:
Wilo Medana CH1-L 202 Performance Curve (50 Hz)
29 kB | Download
Applications
- Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
- Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents
Features
- High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
- Easy installation and maintenance thanks to spey cial, flexibly adjustable connections to manifolds p
- Easy commissioning and operation with the Easy re Controller a
- Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Economy CO-3 Medana CH1-L 202-CE+ Pressure Booster Set?
The Wilo Economy CO-3 Medana CH1-L 202-CE+ Pressure Booster Set has a maximum head of 18.4 m.
How much water can the Wilo Economy CO-3 Medana CH1-L 202-CE+ Pressure Booster Set pump?
The Wilo Economy CO-3 Medana CH1-L 202-CE+ Pressure Booster Set pumps up to 12.93 m³/h.
