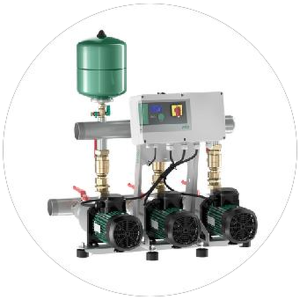

Wilo Economy CO-1 Medana CH1-L 203-CE+ Pressure Booster Set – 400V
19080
The Wilo Economy CO-1 Medana CH1-L 203-CE+ is a pressure boosting system from the Wilo Economy CO-Medana CE+ range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 1 pump(s).
At a glance
Max. head: 27.3 mMax. flow: 4.21 m³/hSupply: 400 V three-phaseSpecifications
| Brand | Wilo |
| Item code | 2801119A |
| Model | Economy CO-1 Medana CH1-L 203-CE+ |
| Supply | 400 V three-phase |
| Series | Wilo Economy CO-Medana CE+ |
| Type | pressure boosting system |
| Number of pumps | 1 |
Performance Table
| Flow (m³/h) | 0.2 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.21 |
|---|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 27.3 | 27 | 26.2 | 24.8 | 23 | 20.6 | 17.5 | 13.6 | 9.14 | 7.07 |
| Shaft power P2 (kW) | 0.18 | 0.2 | 0.24 | 0.28 | 0.3 | 0.33 | 0.35 | 0.36 | 0.36 | 0.37 |
| Hydraulic efficiency (%) | 10 | 20 | 32 | 39 | 43 | 45 | 43 | 38 | 28 | 23 |
| NPSH required (m) | 1.21 | 1.21 | 1.21 | 1.29 | 1.77 | 3.02 | 4.75 | 7.23 | 9.94 | 11.3 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Economy CO-1 Medana CH1-L 203-CE+ Pressure Booster Set:
Wilo Medana CH1-L 203 Performance Curve (50 Hz)
31 kB | Download
Applications
- Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
- Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents
Features
- High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
- Easy installation and maintenance thanks to spey cial, flexibly adjustable connections to manifolds p
- Easy commissioning and operation with the Easy re Controller a
- Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Economy CO-1 Medana CH1-L 203-CE+ Pressure Booster Set?
The Wilo Economy CO-1 Medana CH1-L 203-CE+ Pressure Booster Set has a maximum head of 27.3 m.
How much water can the Wilo Economy CO-1 Medana CH1-L 203-CE+ Pressure Booster Set pump?
The Wilo Economy CO-1 Medana CH1-L 203-CE+ Pressure Booster Set pumps up to 4.21 m³/h.
