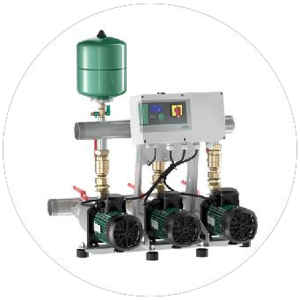

Wilo Economy CO-1 Medana CH1-L 403-CE+ Pressure Booster Set – 400V
19092
The Wilo Economy CO-1 Medana CH1-L 403-CE+ is a pressure boosting system from the Wilo Economy CO-Medana CE+ range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 1 pump(s).
At a glance
Max. head: 29.5 mMax. flow: 6.4 m³/hSupply: 400 V three-phaseSpecifications
| Brand | Wilo |
| Item code | 2801123A |
| Model | Economy CO-1 Medana CH1-L 403-CE+ |
| Supply | 400 V three-phase |
| Series | Wilo Economy CO-Medana CE+ |
| Type | pressure boosting system |
| Number of pumps | 1 |
Performance Table
| Flow (m³/h) | 0.4 | 1 | 2 | 3 | 4 | 5 | 6 | 6.4 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 29.5 | 28.7 | 27.2 | 25.3 | 22.3 | 17.5 | 10.4 | 7.29 |
| Shaft power P2 (kW) | 0.2 | 0.24 | 0.32 | 0.39 | 0.43 | 0.45 | 0.45 | 0.45 |
| Hydraulic efficiency (%) | 19 | 35 | 50 | 57 | 59 | 55 | 40 | 30 |
| NPSH required (m) | 1.25 | 1.15 | 0.94 | 1.31 | 1.97 | 2.84 | 4.4 | 5.33 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Economy CO-1 Medana CH1-L 403-CE+ Pressure Booster Set:
Wilo Medana CH1-L 403 Performance Curve (50 Hz)
30 kB | Download
Applications
- Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
- Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents
Features
- High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
- Easy installation and maintenance thanks to spey cial, flexibly adjustable connections to manifolds p
- Easy commissioning and operation with the Easy re Controller a
- Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Economy CO-1 Medana CH1-L 403-CE+ Pressure Booster Set?
The Wilo Economy CO-1 Medana CH1-L 403-CE+ Pressure Booster Set has a maximum head of 29.5 m.
How much water can the Wilo Economy CO-1 Medana CH1-L 403-CE+ Pressure Booster Set pump?
The Wilo Economy CO-1 Medana CH1-L 403-CE+ Pressure Booster Set pumps up to 6.4 m³/h.
