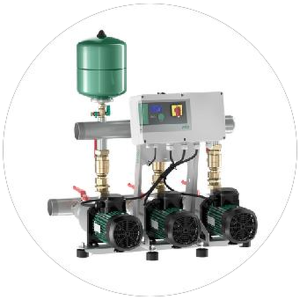

Wilo Vario Boost CO-1 Medana CH1-L 1002-MT Pressure Booster Set – 230V (VSD)
19150
The Wilo Vario Boost CO-1 Medana CH1-L 1002-MT is a variable-speed pressure boosting system from the Wilo Vario Boost Medana MT range. Pressure-boosting system with two or three non-selfpriming stainless steel high-pressure multistage centrifugal pumps switched in parallel. Supplied as a factory-assembled set with 1 pump(s).
At a glance
Max. head: 26 mMax. flow: 14.69 m³/hSupply: 230 V single-phaseSpecifications
| Brand | Wilo |
| Item code | 2804114A |
| Model | Vario Boost CO-1 Medana CH1-L 1002-MT |
| Supply | 230 V single-phase |
| Series | Wilo Vario Boost Medana MT |
| Type | variable-speed pressure boosting system |
| Number of pumps | 1 |
Performance Table
| Flow (m³/h) | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 14.69 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 26 | 25.8 | 25.1 | 24.2 | 22.9 | 20.5 | 16.6 | 11 | 8.74 |
| Shaft power P2 (kW) | 0.4 | 0.48 | 0.62 | 0.73 | 0.84 | 0.91 | 0.96 | 0.98 | 0.98 |
| Hydraulic efficiency (%) | 20 | 33 | 48 | 58 | 64 | 65 | 59 | 45 | 38 |
| NPSH required (m) | 1.93 | 1.33 | 0.85 | 0.78 | 1.19 | 1.96 | 3.31 | 5.49 | 6.48 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Vario Boost CO-1 Medana CH1-L 1002-MT Pressure Booster Set (VSD):
Wilo Medana CH1-L 1002 Performance Curve (50 Hz)
30 kB | Download
Applications
- Fully automatic water supply and pressure boosting in inlet mode, either from the public water supply network or from a tank, for domestic, commercial, industrial and municipal applications (e.g. residential, office, administration buildings, hotels, hospitals, trades, industry, water supply companies)
- Pumping drinking water, process water, cooling water or other industrial water, which does not affect the materials used, neither chemically nor mechanically, and does not have any abrasive or long-fibre constituents
Features
- High operational reliability, thanks to system with one, two or three horizontal multistage CH1-L pumps with stainless steel hydraulics
- Easy installation and maintenance thanks to special, flexibly adjustable connections to manifolds
- Easy commissioning and operation with the Easy Controller
- Drinking water approval (ACS and KTW) for pumps with components made of stainless steel that come into contact with the fluid
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Vario Boost CO-1 Medana CH1-L 1002-MT Pressure Booster Set (VSD)?
The Wilo Vario Boost CO-1 Medana CH1-L 1002-MT Pressure Booster Set (VSD) has a maximum head of 26 m.
How much water can the Wilo Vario Boost CO-1 Medana CH1-L 1002-MT Pressure Booster Set (VSD) pump?
The Wilo Vario Boost CO-1 Medana CH1-L 1002-MT Pressure Booster Set (VSD) pumps up to 14.69 m³/h.
