Wilo Padus PRO M05/T025-540/P / 2.5kW Submersible Drainage Pump

R 42,251.00 incl. VATAdd to Basket

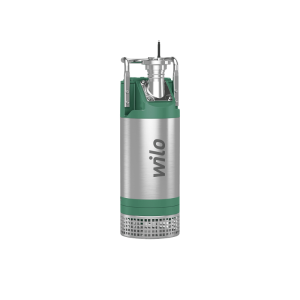

Wilo Padus PRO M05/T025-540/P / 2.5kW Submersible Drainage Pump image 1

The Wilo Padus PRO M05/T025-540/P is a submersible drainage pump from the Wilo Padus PRO range with a 2.5 kW motor rating, delivering up to 60.0 m³/h at a maximum head of 21.2 m. Submersible drainage pump.

At a glance

Power: 2.5 kWSupply: ±10 %Max. head: 21.4 mMax. flow: 59.52 m³/hConnections: Storz CBest for: Pumping of, Wastewater, Process water

Specifications

BrandWilo
Item code6087515
ModelPadus PRO M05/T025-540/P
SeriesWilo Padus PRO
Typesubmersible drainage pump
Discharge sideStorz C
Rated power P22.5 kW
Connection cable length23 m
Mains connection3~400 V, 50 Hz
Maximum operating pressure p2.5 bar
Discharge portStorz C
Free ball passage of the hydraulics10 mm
Hydraulics typeOpen multi-channel impeller
Max. immersion depth20 m
Max. delivery head Hmax21.2 m
Max. volume flow Qmax60.0 m³/h
Min. fluid temperature Tmin3 °C
Max. fluid temperature Tmax40 °C
Min. ambient temperature Tmin3 °C
Max. ambient temperature Tmax40 °C
Voltage tolerance±10 %
Power factor cos φ1000.87
Rated power P22.5 kW
Power consumption P1 max3.05 kW
Rated current IN5.1 A
Starting current I30 A
Activation typeDirect On Line (DOL)
Rated speed n2857 1/min
Max. switching frequency t20 rph
Insulation classH
Protection classIP68
Operating mode (immersed)S1
Pump housingAluminium
ImpellerStainless steel
Pipe connection, discharge side DNdStorz C
Connection cable length L23 m
Float switchno
Maximum operating pressure PN3 bar
Dimensions (W × L × H)30 × 116.6 × 24.9 cm
Weight42 kg

Performance Table

Flow (m³/h)0.02102030405059.52
Head (m)21.42018.115.712.16.950.2
Shaft power P2 (kW)–34.8451.5858.8157.0240.9513.35
Hydraulic efficiency (%)–023443

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Padus PRO M05/T025-540/P:



Wilo Padus PRO M05/T025-540/P Performance Curve (50 Hz)

28 kB  |  Download

Applications

  • Pumping of
  • Wastewater
  • Process water

Features

  • High reliability in abrasive fluids thanks to rubbercoated hydraulics and an impeller made of Duplex chrome steel
  • Easy installation thanks to low weight and flexible discharge connection (vertical/horizontal)
  • Active cooling for reliable continuous operation
  • Continuous duty in slurping operation thanks to passive cooling
  • Easy maintenance thanks to quick access to wearing parts
  • Equipped with energy-efficient IE3 motor technology as standard
  • Highest operational reliability thanks to integrated protection function

Dimensions & Weight

DimensionValue
Length L673 mm
Width W220 mm
Height H220 mm
Net weight (approx.)39 kg
Gross weight (approx.)42 kg
Length with packaging1166 mm
Width with packaging300 mm
Height with packaging249 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Padus PRO M05/T025-540/P?

The Wilo Padus PRO M05/T025-540/P has a maximum head of 21.4 m.

How much water can the Wilo Padus PRO M05/T025-540/P pump?

The Wilo Padus PRO M05/T025-540/P pumps up to 59.52 m³/h.

What power supply does the Wilo Padus PRO M05/T025-540/P need?

Supply: ±10 %. Motor power: 2.5 kW.

What are the pipe connections of the Wilo Padus PRO M05/T025-540/P?

Storz C.
