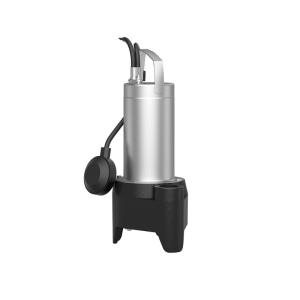

Wilo Rexa MINI3-V04.09/M05-523/A-10M / 0.5kW Submersible Sewage Pump
19243
The Wilo Rexa MINI3-V04.09/M05-523/A-10M is a submersible sewage pump from the Wilo Rexa MINI3 range with a 0.5 kW motor rating, delivering up to 19.0 m³/h at a maximum head of 9.0 m. Submersible pump for stationary and portable wet well installation in intermittent operation.
At a glance
Power: 0.5 kWSupply: ±10 %Max. head: 9.05 mMax. flow: 18.95 m³/hConnections: G 1½Specifications
| Brand | Wilo |
| Item code | 3094009 |
| Model | Rexa MINI3-V04.09/M05-523/A-10M |
| Series | Wilo Rexa MINI3 |
| Type | submersible sewage pump |
| port | G 1½ |
| Connection cable length | 10 m |
| Rated power P2 | 0.5 kW |
| Mains connection | 1~230 V, 50 Hz |
| Maximum operating pressure p | 1 bar |
| Discharge port | G 1½ |
| Free ball passage of the hydraulics | 40 mm |
| Hydraulics type | Vortex impeller |
| Max. immersion depth | 7 m |
| Max. delivery head Hmax | 9.0 m |
| Max. volume flow Qmax | 19.0 m³/h |
| Min. fluid temperature Tmin | 3 °C |
| Max. fluid temperature Tmax | 40 °C |
| Min. ambient temperature Tmin | 3 °C |
| Max. ambient temperature Tmax | 40 °C |
| Motor design | Submersible motor – surface-cooled |
| Voltage tolerance | ±10 % |
| Rated power P2 | 0.5 kW |
| Power consumption P1 max | 0.73 kW |
| Rated current IN | 3.3 A |
| Activation type | Direct On Line (DOL) |
| Number of poles | 2 |
| Rated speed n | 2900 1/min |
| Max. switching frequency t | 30 rph |
| Insulation class | F |
| Protection class | IP68 |
| Operating mode (immersed) | S1 |
| Pump housing | Grey cast iron |
| Impeller | PK-GF30 |
| Pipe connection, discharge side DNd | G 1½ |
| Connection cable length L | 10 m |
| Float switch | yes |
| Maximum operating pressure PN | 1 bar |
| Dimensions (W × L × H) | 21 × 25 × 53 cm |
| Weight | 15 kg |
Performance Table
| Flow (m³/h) | 0.02 | 2.5 | 5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 18.95 |
|---|---|---|---|---|---|---|---|---|---|
| Head (m) | 9.05 | 8.79 | 8.34 | 7.73 | 6.93 | 5.95 | 4.82 | 3.54 | 2.73 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Rexa MINI3-V04.09/M05-523/A-10M:
Wilo Rexa MINI3-V04.09/M05-523/A-10M Performance Curve (50 Hz)
22 kB | Download
Features
- High efficiency and operational reliability thanks to the optimised hydraulics
- Easy installation – even in narrow drainage pits – thanks to its lightweight, compact design with integrated condenser and threaded flange
- Reliable use in a variety of drainage applications thanks to the corrosion-free impeller and sealed cable inlet
- Longer maintenance intervals thanks to the highvolume sealing chamber and double seal
- Quick maintenance facilitated by direct access to the sealing chamber and pump housing
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 216 mm |
| Width W | 164 mm |
| Height H | 416 mm |
| Net weight (approx.) | 14 kg |
| Gross weight (approx.) | 15 kg |
| Length with packaging | 250 mm |
| Width with packaging | 210 mm |
| Height with packaging | 530 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
Frequently Asked Questions
What is the maximum head of the Wilo Rexa MINI3-V04.09/M05-523/A-10M?
The Wilo Rexa MINI3-V04.09/M05-523/A-10M has a maximum head of 9.05 m.
How much water can the Wilo Rexa MINI3-V04.09/M05-523/A-10M pump?
The Wilo Rexa MINI3-V04.09/M05-523/A-10M pumps up to 18.95 m³/h.
What power supply does the Wilo Rexa MINI3-V04.09/M05-523/A-10M need?
Supply: ±10 %. Motor power: 0.5 kW.
What are the pipe connections of the Wilo Rexa MINI3-V04.09/M05-523/A-10M?
G 1½.
